The Sweep Series model SW-8000M-PMCL is an 8192 pixel monochrome line scan camera for high-speed industrial inspection applications.

For high-speed inspection applications:
The SW-8000M-PMCL camera features an 8K custom designed CMOS monochrome line sensor, delivering a scan rate of up to 100 kHz (100,000 lines/second) via a Power-over-mini-Camera-Link interface.

The SW-8000M-PMCL is presently among the fastest cameras on the market with 8192 pixels, making it very suitable for demanding line scan applications such as web inspection (paper, plastic), print inspection, document scanning, parcel/postal sorting, electronic/wafer inspection, and sports imaging finish line applications.

Specified for demanding industrial environments:
The SW-8000M-PMCL is built to JAI’s high shock (80G) and vibration (10G) standards to keep it running fast, year after year.

With small dimension: 62(H) x 62(W) x 48(L) mm; a weight of only 320 g; an ambient operating temperature range of -5 C to +45 C together with a low power consumption (5.22W), the SW-8000M-PMCL is built to operate and last in even the most demanding industrial environments, providing users with low-cost-of-ownership.

The SW-8000M-PMCL camera is available with F-mount and M42 mount and the 8 and 10-bit data output is handled via a Camera Link Deca interface.

Download Product PDF:


  • Sweep Series – SW-8000M-PMCL
  • 8K (8192 pixels)
  • Monochrome
  • Up to 100 kHz scan rate
  • 3.75 x 5.78 μm pixels
  • 8/10-bit
  • 30.72 mm sensor scanning width
  • PMCL interface
  • F-mount or M42x1 mount
  • JAI SDK and GenICam compliant

Request a Quote

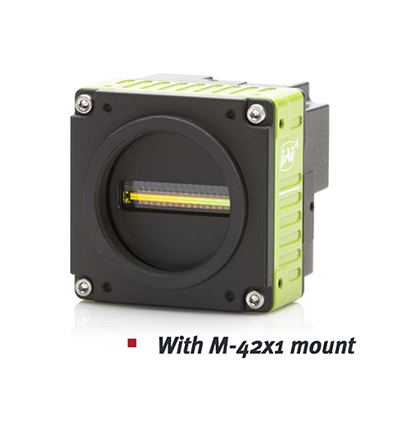

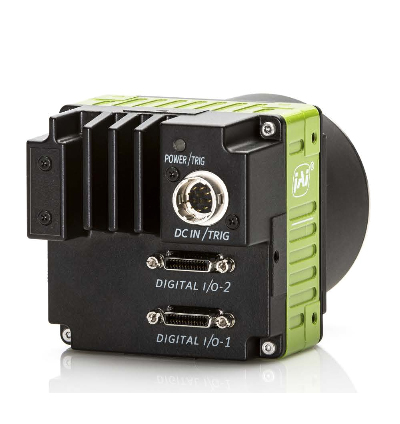

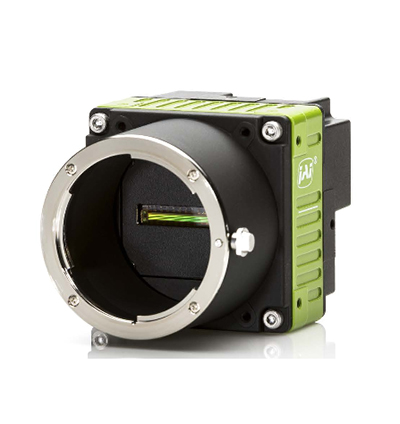

Product image of JAI SW-8000M-PMCL
Product image of JAI SW-8000M-PMCL
Product image of JAI SW-8000M-PMCL
Product Photos
Product image of  JAI SW-8000M-PMCL Product image of  JAI SW-8000M-PMCL Product image of  JAI SW-8000M-PMCL

Quick Info for the JAI SW-8000M-PMCL

Camera Category: Line Scan
Camera Series: Sweep+
FPS: 100 kHz
Interface: Camera Link
Manufacturer: JAI
Resolutions: 8K
Scanning Mode: Line Scan
Signal System: Monochrome
Technology: Camera Link Cameras
