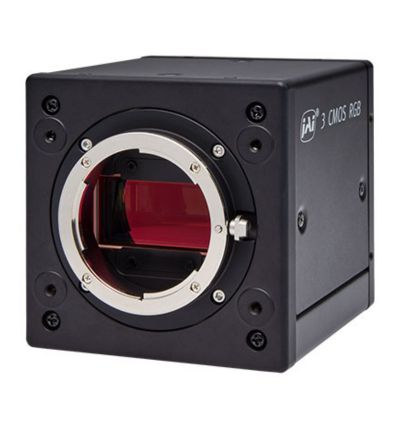

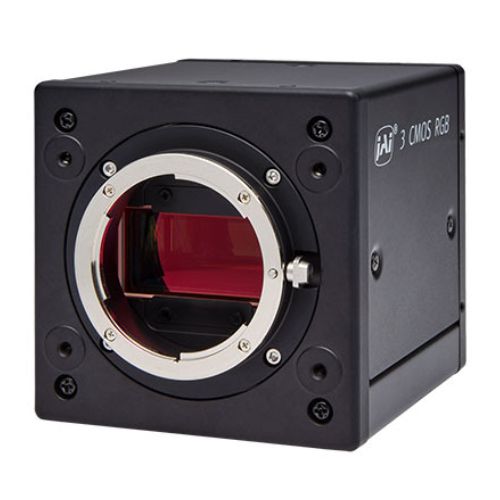

JAI SW-8000T-CXPA Camera

The SW-8000T-CXPA is a high-resolution industrial camera built for demanding imaging applications, utilizing a CoaXPress CXP-12 interface to achieve data rates of up to 12.5 Gbps. With a 49 kHz scan rate, it delivers uncompressed RGB imaging with superior color accuracy through its prism-based R-G-B system. Featuring 8K resolution with three CMOS sensors at 8192 pixels, it employs a pixel structure of 3.75 μm x 5.78 μm for exceptional detail. YUV422_8 compression is available for 8K output at up to 145 kHz, ensuring efficient data processing. The camera also includes vertical dual-line binning and 2x horizontal binning for enhanced performance, along with versatile GPIO options, direct rotary encoder connectivity, built-in color space conversion, and region-of-interest (ROI) functionality. Supporting CoaXPress 2.0 configurations of CXP-12, CXP-6, and CXP-3, it offers extended cable reach up to 100 meters, making it an ideal solution for industrial automation, inspection, and precision imaging applications.

TECHNICAL INFORMATION:

• Prims-based  R-G-B  imaging for supreme color accuracy.
• 8K resolution (3 CMOS sensors x 8192 pixels).
• 3.75 μm x 5.78 μm pixels
• 49 kHz scan rate.
• Single CoaXPress 2.0 interface. CXP-12, CXP-6 or CXP-3.
• Vertical dual-line binning and 2 x horizontal binning.
• Versatile GPIO options.
• Direct connection to rotary encoders
• Built-in color space conversion.
• Region-of-interest (ROI).
