JAI TM-770 Camera

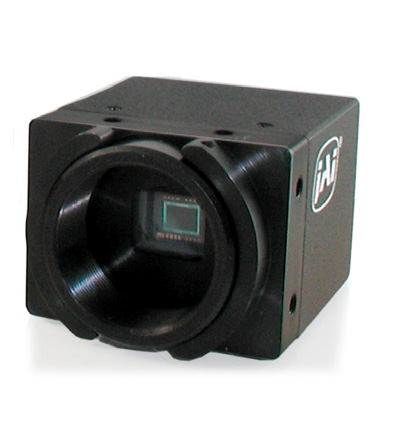

JAI TM-770 monochrome CCD camera

FEATURES:

• Monochrome
• 1/3” NIR, 1/2” NIR, or 2/3” high resolution interline transfer CCD
• 768 x 494 resolution @ 30 fps (EIA)
• Micro, rugged construction
• Shutter from 1/60 to 1/10,000 sec.
• RS-232 adjustable manual gain, selectable ALC modes , shutter, gamma and field/frame select
• External sync in
• Mount positionable on all four sides

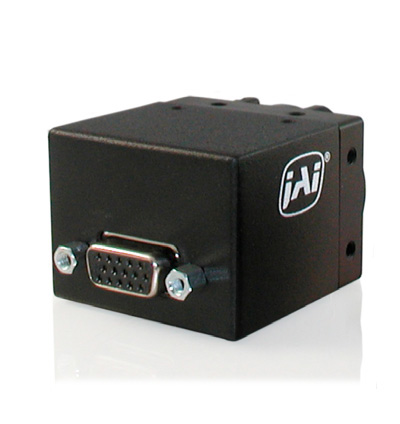

• Single 15 D-sub connector for video, RS-232 and power
• Mirror Image, Horizontal-enable/disable capability
• 3-axis control for lens control or pan/tilt

Download Product PDF:

• JAI TM-770 Camera

TECHNICAL INFORMATION:

• Sensor: 2/3” interlace CCD ICX422AL
• Active pixels: 768 (H) x 494 (V)
• Cell size: 11.6 µm x 13.5 µm
• Scanning: 525 lines / 60 Hz
• TV resolution: 570 (H) x 350 (V)
• S/N ratio: >55 dB min. (AGC Off)
• Sensitivity: 0.08 lux (f=1.4)
• Video output: 1.0 Vp-p composite video, 75 O
• Gamma: 0.45 / 1.0 (RS-232 controlled) 1.0 Factory Default
• Sensitivity (CB-030GE): 1,21 Lux Lux (On sensor, max. gain, shutter off, 50% video)
• Lens mount: C-mount (adjustable)
• Storage temperature: -50° C to +70° C
• Vibration: 7 Grms (20 Hz to 2000 Hz) Random
• Dimensions (H x W x L):
  32 x 42 x 48.48 mm with mechanical enclosure
  29.3 x 39.4 x 35.66 mm without mechanical enclosure
