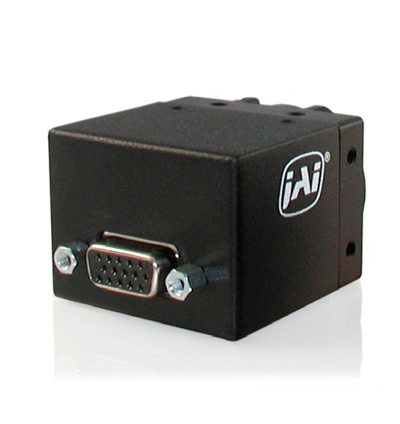

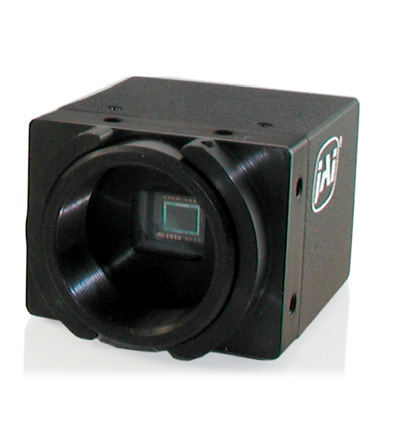

JAI TM-773NIR monochrome CCD camera

FEATURES:

Monochrome
1/3” NIR, 1/2” NIR, or 2/3” high resolution interline transfer CCD
768 x 494 resolution @ 30 fps (EIA)
Micro, rugged construction
Shutter from 1/60 to 1/10,000 sec.
RS-232 adjustable manual gain, selectable ALC modes , shutter, gamma and field/frame select
External sync in
Mount positionable on all four sides
Single 15 D-sub connector for video, RS-232 and power
Mirror Image, Horizontal-enable/disable capability
3-axis control for lens control or pan/tilt

Download Product PDF:

TECHNICAL INFORMATION:

Sensor: 1/3” CCD IR interlace ICX258AL
Active pixels: 768 (H) x 494 (V)
Cell size: 6.35 µm x 7.4 µm
Scanning: 525 lines / 60 Hz
TV resolution: 570 (H) x 350 (V)
S/N ratio: >55 dB min. (AGC Off)
Sensitivity: 0.10 lux (f=1.4)
Video output: 1.0 Vp-p composite video, 75 O
Gamma: 0.45 / 1.0 (RS-232 controlled) 1.0 Factory Default
Sensitivity (CB-030GE): 1,21 Lux Lux (On sensor, max. gain, shutter off, 50% video)
Lens mount: C-mount (adjustable)
Storage temperature: -50° C to +70° C
Vibration: 7 Grms (20 Hz to 2000 Hz) Random
Dimensions (H x W x L):
32 x 42 x 48.48 mm with mechanical enclosure
29.3 x 39.4 x 35.66 mm without mechanical enclosure
