The TMC-775 provides users with a 1/2" format color interlaced camera with excellent sensitivity and a wide range of advanced features.

The Sony ICX428AKL CCD imager offers superior light gathering ability due to its advanced micro lens technology.

An integrated lens controller enables users to remotely operate motorized lenses, pan & tilt heads, or any 3 external control channels. The single 15-pin connector is used for power, camera control, and video output, making installation clean and simple. All camera features are controllable via RS-232 commands over this single interface cable.

Designed with small size and ruggedness in mind, the camera is suitable for a wide range of industrial, aerospace, and homeland security applications. Advanced options include Auto Level Control (ALC) to automatically adjust gain and shutter settings during changing light conditions; conformal coating; pixel blemish compensation; and extended temperature capability for operating in temperatures from -40 degrees C to +65 degrees C.

Dimensions (H x W x L): 32 x 42 x 48 mm


  • Color
  • 1/2" color interlaced camera
  • 768 x 494 resolution @ 30 fps (NTSC)
  • Micro size, rugged construction
  • Shutter from 1/60 to 1/100,000 sec.
  • Integrated 3-axis controller for remote adjustment of zoom, focus, iris, pan, tilt, etc.
  • Single 15 D-sub connector for power, video, and RS-232 control
  • Mount-positionable on all four sides
  • Advanced options available

Download Product PDF:


  • Sensor: 1/2” CCD interlace ICX428AKL
  • Active pixels: 768 (H) x 494 (V)
  • Cell size: 8.4 μm x 9.8 μm
  • Scanning: 525 lines / 60 Hz
  • TV resolution: 570 (H) x 350 (V)
  • S/N ratio: >50 dB min. (AGC Off)
  • Sensitivity: 0.25 lux (f=1.4))
  • Video output: 1.0 Vp-p composite video, 75 O
  • Gamma: 0.45 / 1.0 (RS-232 controlled) 1.0 Factory Default
  • Lens mount: C-mount (adjustable)
  • Storage temperature: -50° C to +70° C
  • Vibration: 7 Grms (20 Hz to 2000 Hz) Random
  • Dimensions (H x W x L):
    32 x 42 x 48.48 mm with mechanical enclosure
    29.3 x 39.4 x 35.66 mm without mechanical enclosure

Request a Quote

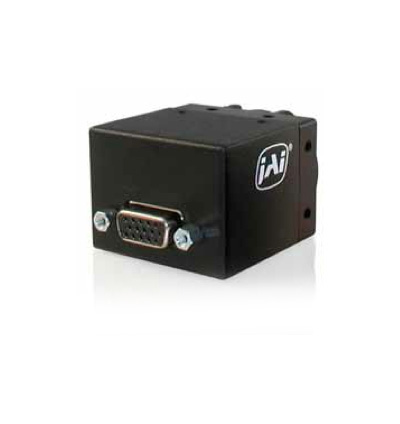

Product image of JAI TMC-775
Product image of JAI TMC-775
Product Photos
Product image of  JAI TMC-775 Product image of  JAI TMC-775

Quick Info for the JAI TMC-775

Camera Category: Area Scan
Camera Series: TM
FPS: 30
Interface: Analog
Manufacturer: JAI
Resolutions: Under 1 MP
Scanning Mode: Interlace
Signal System: Color
