The PL-C722 ultra-compact cameras provide high resolution, low noise images for outstanding value in a broad range of industrial applications

The camera features a 2.3 megapixel (1920 x 1200) resolution imager capable of 17 fps at full resolution.

The PL-C722 series of cameras are based on a ONSemi CMOS sensor with a 2/3” optical format. The extensive built-in image processing possibilities (image preprocessing) result in outstanding image quality, less load on the system and high performance. These cameras provide the user of choice of 8-bit or 10-bit digitization and a dynamic range of 53dB in 10-bit mode.

With the PL-C design the sensor can be located directly on the main electronics or tethered to the main electronics through a 6" flat flex circuit cable.


PixeLINK® cameras include numerous real-time image pre-processing functions. All below mentioned functions are performed by the FPGA inside the camera – with no additional CPU load and thus an inexpensive host computer.

  • Bayer 8, Bayer 16  and YUV422 (color versions)
  • Mono 8 and Mono 16 (mono versions)
  • Auto exposure
  • Binning, Averaging and Resampling
  • Image Flip and Image Rotate
  • ROI (Region of Interest Readout)
  • Saturation, sharpness and Brightness (color versions)
  • Gain
  • Gamma
  • Color temperature
  • Frame Rate control

The PixeLINK® technical manual contains detailed descriptions of all functions.


  • Bit Depth: 8 & 10
  • Color: Mono, Color
  • Configuration: Board Level
  • Frame Rate: 17
  • Interface: USB 2.0
  • Lens Mount: CS-Mount (BL version only), C-Mount
  • Resolution: 1900 x 1200 (2.3MP)
  • Sensor Size: 2/3
  • Sensor Type: CMOS
  • Shutter Type: Global
  • Triggering Options: Manual & Software

Request a Quote

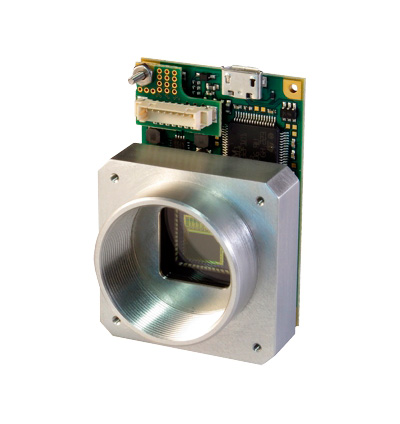

Product image of PixeLINK PL-C722
Product Photos
Product image of  PixeLINK PL-C722

Quick Info for the PixeLINK PL-C722

Camera Category: Area Scan
Camera Series: Industrial Vision Cameras
FPS: 17
Interface: USB 2
Manufacturer: PixeLINK
Resolutions: 2.3 MP
Scanning Mode: -
Signal System: Color
Signal System: Monochrome
Technology: Area Scan Sensors
