PixeLINK PL-D722 Camera

PL-D722 USB 3.0 Color Camera

The USB 3.0 cameras link together the benefits of high frame rate CMOS technology with the high speed data throughput of USB 3.0 technology. PL-D722 color cameras provide low noise images for outstanding value in a broad range of industrial applications. The camera features a 2.3 megapixel (1920 x 1200) resolution imager capable of 92 fps at full resolution.

The PL-D722-C model of cameras are based on a ON Semiconductor CMOS global shutter sensor with a 2/3” optical format. The extensive built-in image processing possibilities (image pre-processing) result in outstanding image quality, less load on the system and higher performance. These cameras provide the user choice of 8-bit or 10-bit digitization and a dynamic range of 53dB in 10-bit mode. The external hardware trigger and 2 general-purpose outputs ensure users have the flexibility to synchronize the camera with their processes and illumination.

PixeLINK's industry leading SDK uses a common API for all cameras regardless of the chosen interface. Software code developed for one camera is easily transferred to other PixeLINK models without the need to recompile. Overall system costs are reduced and camera integration is simplified.

The flexible Region of Interest (ROI) control allows users to operate at higher frame rates by placing a lower resolution “window” on the imager at any location.

FEATURES:

• 2.3MP (1920 x 1200) Resolution
• CMOS Global Shutter
• Color
• 92 fps at full resolution
• USB 3.0
• Flexible Region of Interest (8 pixel H x 32 pixel W granularity)
• 1 trigger input, 2 general purpose outputs (3.3V)
• Great image quality
• Compact size

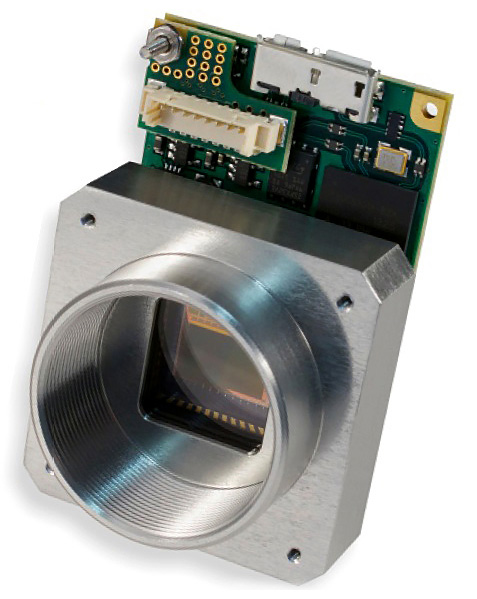

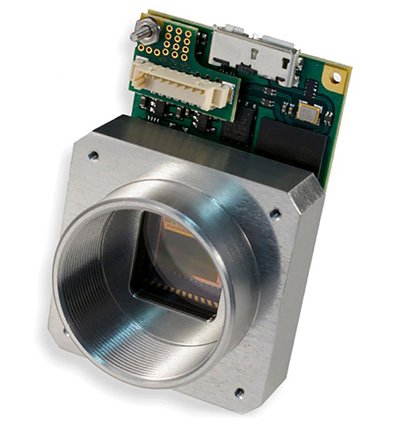

• Enclosed or Board Level models available
• One common API for all cameras
• Free professional technical assistance

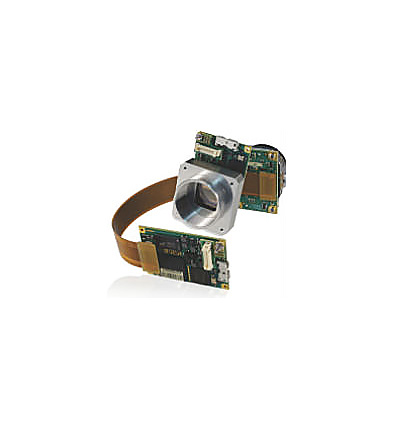

• Tethered sensor head option 6”/12” (*Board Level version only)
• Auto & manual exposure
• Programmable LUT
• Auto & Manual White Balance
• Gain
• Gamma
• Saturation
• Binning and Decimation
• Image Flip & Rotate
• Callbacks (Image Filters)

Download Product PDF:

• PixeLINK PL-D722 Camera

TECHNICAL INFORMATION:

• Sensor: ON Semiconductor CMOS
• Sensor Type: CMOS Global Shutter
• Resolution: 1920(H) x 1200(V) 2.3 MP Color & Mono
• Pixel Pitch: 4.8 μm x 4.8 μm
• Active Area: 9.216 mm x 5.76 mm - 10.87 mm diagonal
• Peak: QE 53 %
• Max Datarate: 248MHz
• Bit Depth: 8 or 10-bit
• Interface / Date rate: USB 3.0/ Micro-B / 5Gbps
• Board Level Trigger Connector: 8-pin Molex 1.25mm pitch
• Enclosed Trigger Connector: Hirose round 8-pin
• Trigger Modes: Software and hardware
• Board Level Trigger Input: 1 input, 3.3V (with internal pullup resistor)
• Enclosed Trigger Input: 1 optically Isolated, 5-12V DC at 4-11 mA
• Board Level GPO/Strobe: 2 outputs, 3.3V
• Enclosed GPO/Strobe: 2 outputs, 3.3V and 1 optically isolated max 40V DC, max 15mA
• Dimensions: 32 x 48 x 11 mm (without lens mount)
• Weight: 35.8 g (without optics)
• Mounting: Holes for 0-80 hardware
• Lens Mount: C-mount, CS-mount and S-mount
