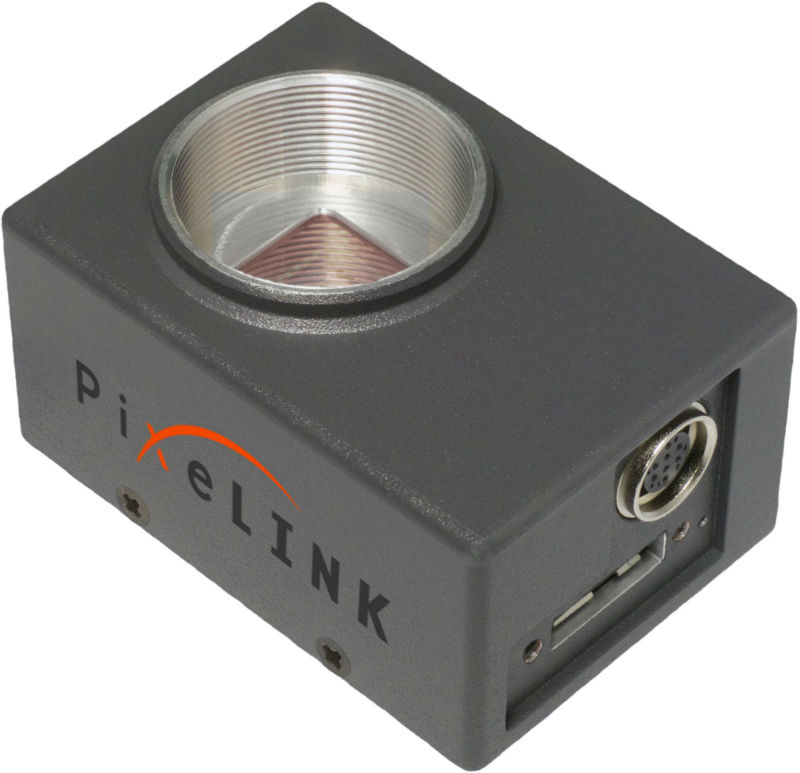

PixeLINK PL-D726 Camera

PL-D726 USB 3.0 Monochrome Camera

The USB 3.0 cameras link together the benefits of high resolution CMOS technology with the high speed data throughput of USB 3.0 technology. PL-D726 monochrome cameras provide low noise images for outstanding value in a broad range of industrial applications. The camera features a 6.6 megapixel (2208 x 3000) resolution imager capable of 5.3 fps at full resolution.

The PL-D726 model is based on a ON Semiconductor CMOS rolling shutter sensor with a 1” optical format. The extensive built-in image processing possibilities (image pre-processing) result in outstanding image quality, less load on the system and higher performance. These cameras provide the user choice of 8-bit or 10-bit digitization and a dynamic range of 60dB in 10-bit mode. The external hardware trigger and 2 general-purpose outputs ensure users have the flexibility to synchronize the camera with their processes and illumination.

PixeLINK's industry leading SDK uses a common API for all cameras regardless of the chosen interface. Software code developed for one camera is easily transferred to other PixeLINK models without the need to recompile. Overall system costs are reduced and camera integration is simplified.

The flexible Region of Interest (ROI) control allows users to operate at higher frame rates by placing a lower resolution “window” on the imager at any location.

FEATURES:

• 6.6MP (2208 x 3000) Resolution
• CMOS Rolling Shutter
• Color
• 5.3 fps at full resolution
• USB 3.0
• Flexible Region of Interest
• Compact size
• One common API for all cameras
• Free professional technical assistance

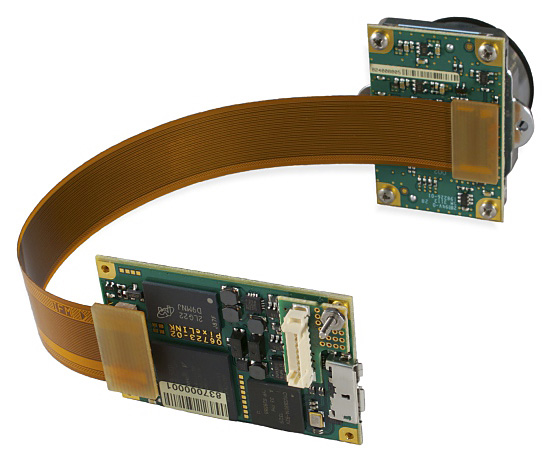

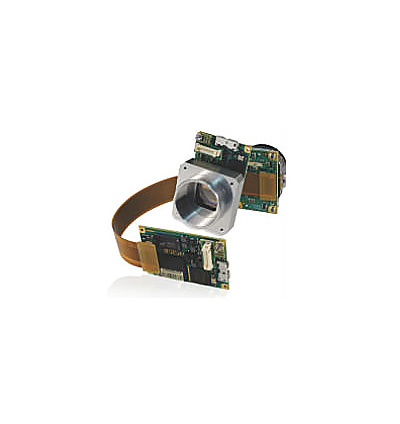

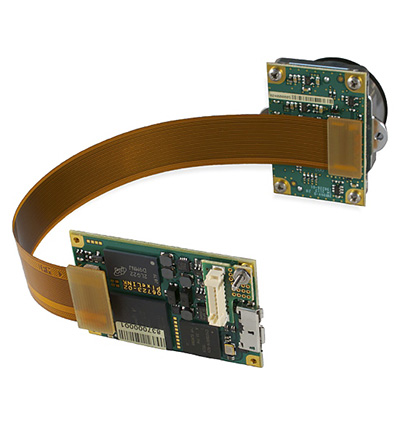

• Tethered sensor head option 6”/12” (*Board Level version only)
• 1 trigger input, 2 general purpose outputs (3.3V)
• Auto & manual exposure
• Programmable LUT
• Gain
• Gamma
• Binning and Decimation
• Image Flip & Rotate
• Callbacks (Image Filters)

Download Product PDF:

• PixeLINK PL-D726 Camera

TECHNICAL INFORMATION:

• Sensor: ON Semiconductor CMOS
• Sensor Type: CMOS Global Shutter
• Resolution: 2208(H) x 3000(V) 6.6 MP Mono
• Pixel Pitch: 3.5 μm x 3.5 μm
• Active Area: 7.73 mm x 10.5 mm - 13.1 mm diagonal
• Peak: 25 %
• Max Datarate: 40 MHz
• Bit Depth: 8 or 10-bit
• FPN: <0.20 % of signal
• PRNU: <1.7 % of signal
• Dynamic Range: 60 dB
• Bit Depth: 8 or 10-bit
• Sensitivity at 650 nm: 411 V.m²/W.s - 4.83 V/lux.s (85 lux = 1 W/m²)
• Fill Factor: 35 %
• Mono Data Formats: Mono 8 and Mono 16
• Dimensions: 32 x 48 x 11 mm (without lens mount)
• Weight: 46.2 g (without optics)
• Mounting: Holes for 0-80 hardware
• Lens Mount: C-Mount
