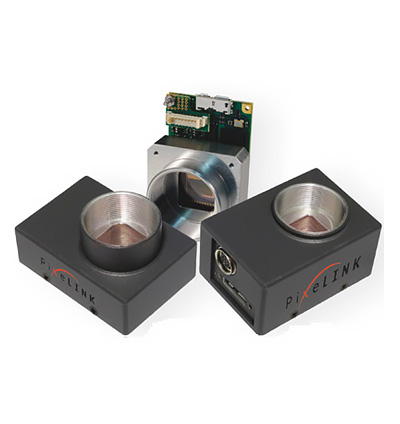

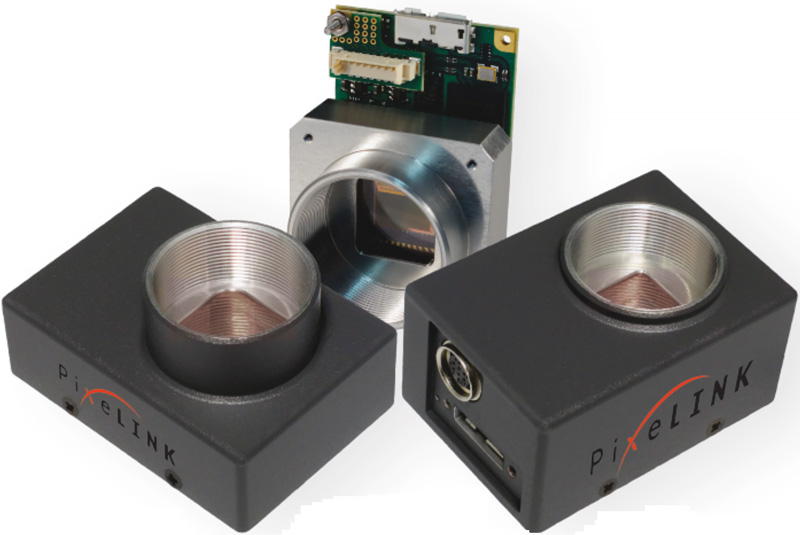

PixeLINK PL-D729 Camera

The PL-D729 : High Resolution. Low Noise.

The PL-D729 monochrome compact USB 3.0 camera provides high resolution, low noise images for outstandingvalue in a broad range of industrial applications. This USB camera features a 9.5 megapixel (3840 x 2484) resolution imager capable of 22 fps at full resolution.

The PL-D729 series of USB cameras is based on a ON Semiconductor CMOS rolling shutter sensor with a 2/3” optical format.The extensive built-in image pre-processing possibilities result in outstanding image quality, less load onthe system, and higher performance.

Users can choose 8-bit or 10-bit digitization and a dynamic range of 54dB in 10-bit mode. The external hardware trigger and 2 general-purpose outputs give users the flexibility to synchronize the camera with their specific processes and illumination.

FEATURES:

PixeLINK USB 3.0 cameras include a number of real-time image pre-processing functions. All functions mentioned below are performed by the FPGA inside the camera – with no additional CPU load – allowing the use of an inexpensive host computer.

• Auto & manual exposure
• Programmable LUT
• Gain
• Gamma
• Binning and Decimation
• Image Flip & Rotate
• Callbacks (Image Filters)

Download Product PDF:

• PixeLINK PL-D729 Camera

TECHNICAL INFORMATION:

• Bit Depth: 8 & 10
• Color: Mono
• Configuration: Board Level, Standard
• Frame Rate: 22
• Interface: USB 3.0
• Lens Mount: CS-Mount (BL version only), C-Mount
• Resolution: 3840 x 2484 (9.5MP)
• Sensor Size: 2/3
• Sensor Type: CMOS
• Shutter Type: Rolling
• Triggering Options: Software Only
