Pixelink offers the PL-D7512 camera, with Sony IMX253 CMOS global shutter sensors.

The PL-D7512 cameras are based on a Sony IMX253 CMOS global shutter sensor with a 1.1" sensor size. USB 3.0 interface links together the benefits of high frame rate CMOS technology with the high-speed data throughput of USB 3.0 technology.

CAMERA & LENS PAIRING SOLUTIONS

The Resolv4k, 12X Zoom and Zoom 6000 lens systems seamlessly integrate with Pixelink CMOS cameras giving you high-resolution, low-noise digital imaging solutions backed by industry leading sales and technical support.

PL-D7512 TYPICAL APPLICATIONS

  • Parts Inspection
  • Strength Testing
  • Metrology
  • Biometrics
  • Medical Imaging
  • PCB & Flat Panel Display Imaging

Download Product PDF:

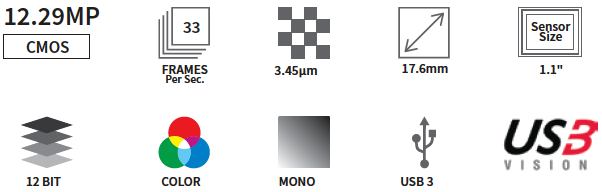

TECHNICAL INFORMATION:

  • 12 MP
  • Sony IMX253
  • 1.1" Sensor Size
  PL-D7512CU PL-D7512CU-BL PL-D7512CU-T PL-D7512MU PL-D7512MU-BL PL-D7512MU-T
Bit Depth 8-bit, 12-bit 8-bit, 12-bit
Camera Type Machine Vision Machine Vision
Color Space Color Mono
Frame Rate 33 33
Housing Enclosed Board Level Enclosed Enclosed Board Level Enclosed
Interface USB 3.0 USB 3.0
Lens Mount C-Mount C-Mount
Pixel Pitch 3.45µm 3.45µm
Resolution 4096 x 3000 4096 x 3000
Sensor Diagonal 17.6 mm 17.6 mm
Sensor Model Sony IMX253 Sony IMX253
Sensor Size 1.1" 1.1"
Sensor Type CMOS CMOS
Shutter Type Global Global

Request a Quote

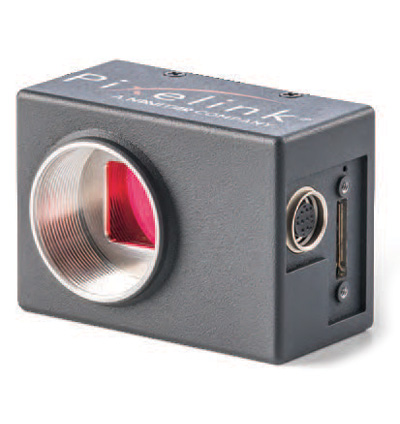

Product image of PixeLINK PL-D7512
Product Photos
Product image of  PixeLINK PL-D7512

Quick Info for the PixeLINK PL-D7512CU

Camera Category: Enclosed
Camera Series: Industrial Vision Cameras
FPS: 33
Interface: USB 3.0
Manufacturer: PixeLINK
Resolutions: 4096 x 3000
Scanning Mode: Area Scan
Signal System: Color

Quick Info for the PixeLINK PL-D7512CU-BL

Camera Category: Board Level
Camera Series: Industrial Vision Cameras
FPS: 33
Interface: USB 3.0
Manufacturer: PixeLINK
Resolutions: 4096 x 3000
Scanning Mode: Area Scan
Signal System: Color

Quick Info for the PixeLINK PL-D7512CU-T

Camera Category: Enclosed
Camera Series: Industrial Vision Cameras
FPS: 33
Interface: USB 3.0
Manufacturer: PixeLINK
Resolutions: 4096 x 3000
Scanning Mode: Area Scan
Signal System: Color

Quick Info for the PixeLINK PL-D7512MU

Camera Category: Enclosed
Camera Series: Industrial Vision Cameras
FPS: 33
Interface: USB 3.0
Manufacturer: PixeLINK
Resolutions: 4096 x 3000
Scanning Mode: Area Scan
Signal System: Monochrome

Quick Info for the PixeLINK PL-D7512MU-BL

Camera Category: Board Level
Camera Series: Industrial Vision Cameras
FPS: 33
Interface: USB 3.0
Manufacturer: PixeLINK
Resolutions: 4096 x 3000
Scanning Mode: Area Scan
Signal System: Monochrome

Quick Info for the PixeLINK PL-D7512MU-T

Camera Category: Enclosed
Camera Series: Industrial Vision Cameras
FPS: 33
Interface: USB 3.0
Manufacturer: PixeLINK
Resolutions: 4096 x 3000
Scanning Mode: Area Scan
Signal System: Monochrome
