PixeLINK PL-D752 Camera

The USB 3.0 cameras link together the benefits of high frame rate CMOS technology with the high speed data throughput of USB 3.0 technology

PL-D752 color and monochrome cameras provide low noise images for outstanding value in a broad range of industrial applications. The camera features a 2.3 megapixel (1920 x 1200) resolution imager capable of 165 fps at full resolution in 10-bit mode and 129 fps in 12-bit mode.

The PL-D752 model of cameras are based on a SONY CMOS global shutter sensor with a 1/1.2” optical format. The extensive built-in image processing possibilities (image pre-processing) result in outstanding image quality, less load on the system and higher performance. These cameras provide the user choice of 10-bit or 12-bit digitization and a dynamic range of up to 75dB in 12-bit mode. The external hardware trigger and 2 general-purpose outputs ensure users have the flexibility to synchronize the camera with their processes and illumination.

PixeLINK’s industry leading SDK uses a common API for all cameras regardless of the chosen interface. Software code developed for one camera is easily transferred to other PixeLINK models without the need to recompile. Overall system costs are reduced and camera integration is simplified.

The flexible Region of Interest (ROI) control allows users to operate at higher frame rates by placing a lower resolution “window” on the imager at any location.

Typical Applications:

• Medical
• High performance security & surveillance applications
• Parts inspection
• Metrology and biometrics
• Welding inspection
• PCB and flat panel display inspection.

Customization – The products listed here are standard offerings. PixeLINK also provides an extensive list of customized cameras to OEM customers around the world. We may already have what you need. If not, we can certainly design and build it for you.

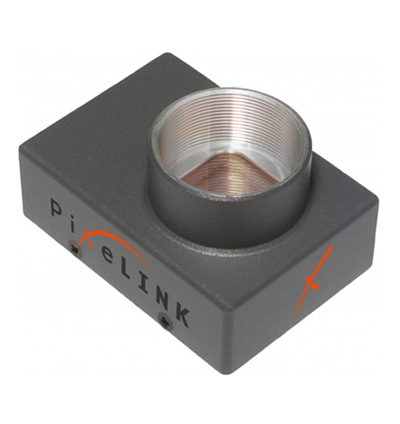

Enclosed Camera

The small enclosed case design offers you a robust, high quality industrial camera that can be easily incorporated into a variety of system configurations.

GPIO Enclosed Camera

The GPIO enclosed case design offers you a 8-pin Hirose connector, robust, high quality industrial camera that can be easily incorporated into a variety of system configurations.

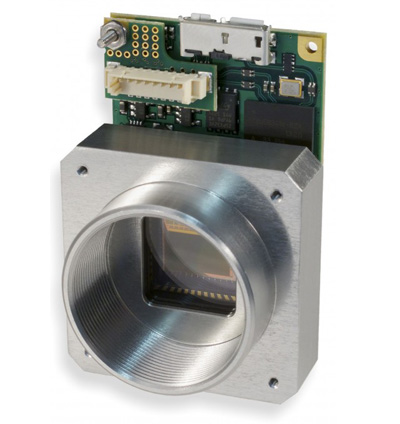

Board Level Camera

Board Level cameras are designed for custom integration into OEM and end-user industrial applications providing an increased degree of mounting flexibility while maintaining the same feature set and image quality of enclosed cameras. The boards are connected to the sensor board via the onboard Molex connector or thethered via a 6″ (other lengths are available) flat circuit ribbon cable.

Download Product PDF:

• PixeLINK PL-D752 Camera

TECHNICAL INFORMATION:

PixeLINK USB 3.0 cameras include a number of real-time image pre-processing functions. All functions mentioned below are performed by the FPGA inside the camera – with no additional CPU load – allowing the use of an inexpensive host computer.

• Auto & manual exposure
• Programmable LUT
• Auto & Manual White Balance
• Color Temperature
• Gain
• Gamma
• Saturation
• Histogram
• Binning and Decimation
• Image Flip & Rotate
• Callbacks (Image Filters)
