Available Variations:

  • PL-D755MU-BL-POL

  • PL-D755MU-POL

  • PL-D755MU-T-POL

Pixelink offers the PL-D755MU-POL polarization machine vision camera.

The PL-D755MU-POL polarization machine vision camera, featuring the Sony IMX250MZR image sensor, offers broader visual detection and characterization capabilities of material properties and improved performance over conventional monochrome sensors.

The PL-D755MU-POL has a 2/3” optical format, 3.45 micron pixel resolution and is available in board level or enclosed configurations.

The IMX250MZR sensor is designed with Sony’s innovative pixel-level quad polarization filter technology, where four polarizer positions, one per pixel, are angled at 0°, 45°, 90° and 135°, to enable greater detection of both the amount and angles of polarized light across an image. By filtering unwanted reflections and reducing glare, imaging previously undetectable defects, such as scratches, stress on materials and transparent objects, is now possible.

As with all Pixelink cameras, the PL-D755MU-POL is compatible with Pixelink Capture, our free real-time interactive multi-camera software. Pixelink Capture includes the ability to view all four polarization angles at once, or one at a time in several different formats including, HSV, Stokes and Polar.

TYPICAL APPLICATIONS

  • Parts Inspection
  • Strength/Stress Testing
  • Traffic Enforcement
  • Medical Imaging
  • PCB & Flat Panel Display Inspection
  • Scratch Inspection
  • Metrology
  • Biometrics

Download Product PDF:

TECHNICAL INFORMATION:

  • 5 MP
  • Sony IMX250MZR
  • 2/3" Sensor Size
  PL-D755MU-POL PL-D755MU-BL-POL PL-D755MU-T-POL
Bit Depth 8-bit, 12-bit
Camera Type Industrial
Color Space Monochrome
Frame Rate 36
Housing Enclosed Board Level Enclosed
Interface USB 3.0
Lens Mount C-Mount
Pixel Pitch 3.45µm
Resolution 2448 x 2048
Sensor Diagonal 11.1 mm
Sensor Model Sony IMX205MZR
Sensor Size 2/3"
Sensor Type CMOS
Shutter Type Global

Request a Quote

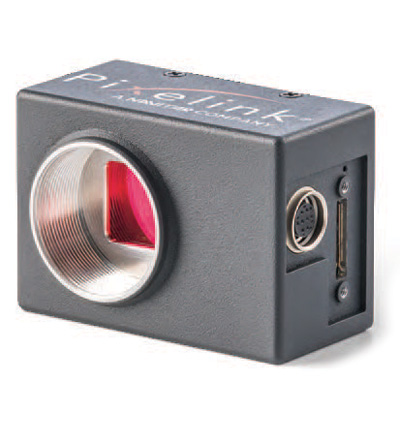

Product image of PixeLINK PL-D755MU-POL
Product Photos
Product image of  PixeLINK PL-D755MU-POL

Quick Info for the PixeLINK PL-D755MU-BL-POL

Camera Category: Board Level
Camera Series: Industrial Vision Cameras
FPS: 36
Interface: USB 3.0
Manufacturer: PixeLINK
Resolutions: 2448 x 2048
Scanning Mode: Area Scan
Signal System: Polarized-M

Quick Info for the PixeLINK PL-D755MU-POL

Camera Category: Enclosed
Camera Series: Industrial Vision Cameras
FPS: 36
Interface: USB 3.0
Manufacturer: PixeLINK
Resolutions: 2448 x 2048
Scanning Mode: Area Scan
Signal System: Polarized-M

Quick Info for the PixeLINK PL-D755MU-T-POL

Camera Category: Enclosed
Camera Series: Industrial Vision Cameras
FPS: 36
Interface: USB 3.0
Manufacturer: PixeLINK
Resolutions: 2448 x 2048
Scanning Mode: Area Scan
Signal System: Polarized-M
