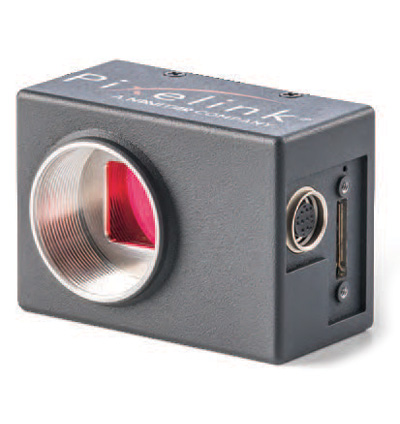

PixeLINK PL-D757 Camera

Pixelinks PL-D757 models take advantage of  new features for more ease of use.

The PL-D757 cameras are based on the 3rd generation Sony IMX420 Pregius CMOS global shutter sensor with a 1.1” sensor size offer on camera HDR features ideal for high dynamic range (HDR) imaging applications requiring both high resolution images and high frame rates.

A key feature of the 3rd generation Sony Pregius CMOS sensors is a Dual ADC mode where each pixel can be read out with two different gains. The PL-D757 models take advantage of this new feature to combine the dual ADC images into a single hybrid HDR image directly on camera, thus removing the need for any host processing. Real time on camera HDR is an easy way for the user to gain 6dB-10dB of additional dynamic range on their image without loading down the CPU or requiring additional complex software algorithms. Everything is done on the camera which outputs the HDR image directly.

TYPICAL APPLICATIONS

• Parts Inspection
• Strength Testing
• Metrology
• Biometrics
• Medical Imaging
• PCB & Flat Panel Display Inspection

Download Product PDF:

• PixeLINK PL-D757 Camera

TECHNICAL INFORMATION:

• 7 MP
• Sony IMX420
• 1.1" Sensor Size
