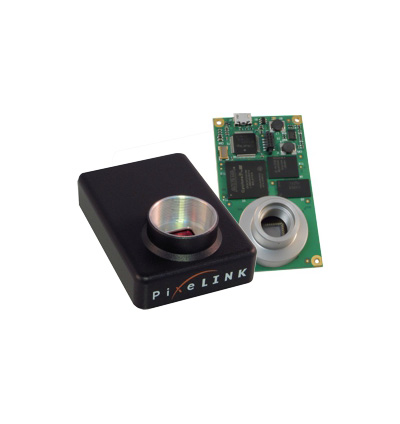

PixeLINK PL-E531 Camera

The PL-E531 is a high performance Micro-B USB2.0 1.3 mega pixel monochrome camera designed for a broad range of industrial imaging applications

This camera is based on the Micron CMOS rolling shutter progressive scan sensor with a 1/2” optical format.

FEATURES:

PixeLINK® cameras include numerous real-time image pre-processing functions. All below mentioned functions are performed by the FPGA inside the camera – with no additional CPU load and thus an inexpensive host computer.

• Bayer 8, Bayer 16  and YUV422 (color versions)
• Mono 8 and Mono 16 (mono versions)
• Auto exposure and auto white balance
• Binning, Decimation and Averaging
• Image Flip and Image Rotate
• ROI (Region of Interest Readout)
• Saturation, sharpness and Brightness (color versions)
• Gain
• Gamma
• Color temperature
• Frame Rate control

The PixeLINK® technical manual contains detailed descriptions of all functions.

Download Product PDF:

• PixeLINK PL-E531 Camera

TECHNICAL INFORMATION:

• Bit Depth: 8 & 10
• Color: Mono
• Configuration: Board Level, Standard
• Frame Rate: 28
• Interface: Micro-B USB 2.0
• Lens Mount: CS-Mount (BL version only), C-Mount, S-Mount Adapter
• Resolution: 1280 x 1024 (1.3MP)
• Sensor Size: 1/3
• Sensor Type: CMOS
• Shutter Type: Rolling
• Triggering Options: Software Only
