The PL-B625 is a high performance microscopy camera designed to capture highly detailed, publication quality images

The camera features a 1/2.5" 5.0 megapixel CMOS sensor and can provide 7 frames per second at full resolution, or 90 frames per second at VGA resolution. The sensor features a 2.2 µm pixel pitch and is capable of 12-bit output.

FEATURES:

PixeLINK® µScope Standard Microscopy Software

The PixeLINK® µScope Standard microscope software offers you feature-rich image measurement and processing software for use with all PixeLINK® microscope cameras.

PixeLINK® µScope Standard microscope software includes all of the features present in our µScope Essentials software plus:

  • Auto&Semi-Auto Calibration option: Auto and semi-auto calibration functions allow the software to automatically calculate the pixels-per-unit value. You only need to set the unit for the calibration scale and the distance between the scale marks. This feature greatly improves the accuracy measurements and speeds repeat measurements.
  • Line Profiling: Single, multiple, parallel and polyline commands provide Gray/Red/Green/Blue intensity values for specific lines within an image. The profile data of each pixel on the line can be exported to Microsoft® Excel.
  • Image Processing: Manual Brightness, Contrast, Gamma, Background Subtraction, Histogram, Clone, Crop, ROI, Resize, Rotate, Split, Image Mode Change, Grayscale, RGB, HSB, YUV Pseudo Color view, Full range of enhancement and morphology filters 8bit and 16bit per channel

MICROSCOPE COUPLER:

  • Requires a 0.5x C-mount Coupler

Learn more from our PixeLINK® µScope datasheet or contact us directly for more information.

TECHNICAL INFORMATION:

  • Bit Depth: 8 & 10
  • Color: Color
  • Configuration: µScope Pro, Standard
  • Frame Rate: 7
  • Interface: USB 2.0, Firewire A
  • Lens Mount: C-Mount
  • Resolution: 2592 x 1944 (5.0MP)
  • Sensor Size: 1/2.5
  • Sensor Type: CMOS
  • Shutter Type: Rolling
  • Triggering Options: Software Only

Request a Quote

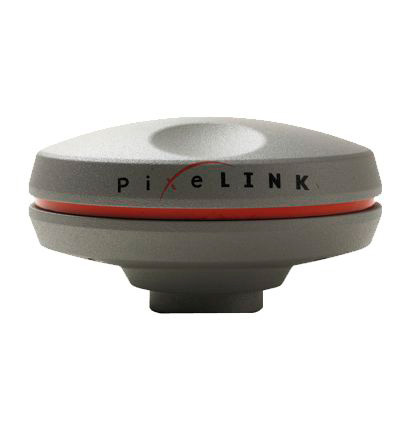

Product image of PixeLINK PL-B625
Product Photos
Product image of  PixeLINK PL-B625

Quick Info for the PixeLINK PL-B625

Camera Category: Area Scan
Camera Series: Life Science Cameras
FPS: 7
Interface: USB 2
Manufacturer: PixeLINK
Resolutions: 5 MP
Scanning Mode: -
Signal System: Color
