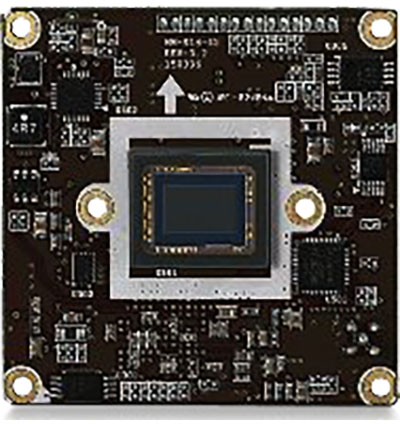

Super sensitive 42 mm x 42 mm single board 12 MP camera with HD-SDI/EX-SDI and CVBS output
Download Product PDF:
TECHNICAL INFORMATION:
- 1 / 1.7" 2MP Sony IMX226 CMOS sensor
- 2160p30/25, 1440p30/25, 1080p60/50/30/25, 720p60/50/30/25, NTSC, PAL
- Low latency (alike CVBS)
- VISCA direct commands via UART 3.3V TTL, Pelco-D
- 42 mm x 42 mm single board
- Superior low light imaging
- Digital zoom (x32)
- CVBS in cropped (4:3) and full sensor mode (16:9)
- Digital Noise Reduction(2D+3D)
- Power: 4.0W
- Voltage: 12 V
- Video Out: parallel EX-SDI/HD-SDI and CVBS
Quick Info for the Skoopia 128C42X
| Camera Category: | Board Level |
|---|---|
| Camera Series: | Board Level (Skoopia) |
| FPS: | 60 |
| Interface: | HD-SDI |
| Manufacturer: | Skoopia |
| Resolutions: | 3840 x 2160 |
| Scanning Mode: | Progressive Scan |
| Signal System: | Digital Color |
| Technology: | Embedded / Board Cameras |
