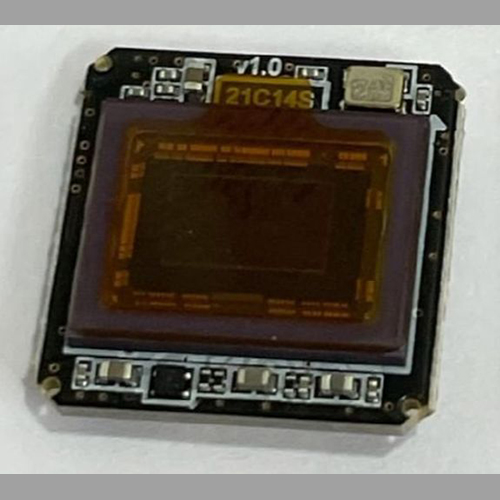

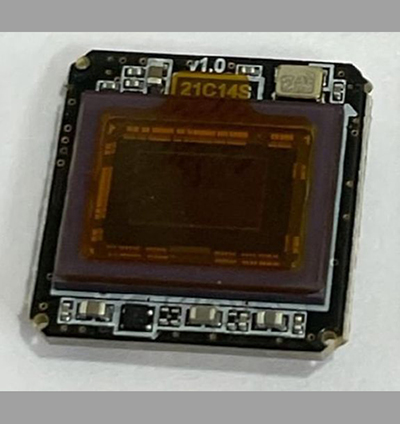

Super small 14mm x 14mm single-board Full HD camera with HD-SDI/EX-SDI output
TECHNICAL INFORMATION:
- 1 / 2.8" 2MP Sony IMX327 CMOS sensor
- 1080p30/25, 720p60/50/30/25
- Digital video with low latency (alike CVBS)
- VISCA direct commands via UART 3.3V TTL
- 14mm x 14mm single board, with cut off corners to meet round 19mm
- True DOL WDR
- Digital Noise Reduction(2D+3D)
- Super low power: 0.4W
- Dual voltage required: 1.2V and 3,3V
- Video Out: EX-SDI, HD-SDI
Quick Info for the Skoopia 21C14S
| Camera Category: | Board Level |
|---|---|
| Camera Series: | Board Level (Skoopia) |
| FPS: | 30 |
| Interface: | HD-SDI |
| Manufacturer: | Skoopia |
| Resolutions: | 1920 x 1080 |
| Scanning Mode: | Progressive Scan |
| Signal System: | Digital Color |
| Technology: | Embedded / Board Cameras |
