XCG-H280E: high-quality, high-sensitivity monochrome camera

Sony is expanding its popular XCG GigE camera series with the introduction of a new high-quality, high-sensitivity monochrome camera. The new XCG-H280E incorporates a 2/3-type EXview HAD II™ CCD sensor which provides greater sensitivity in the visible and near-infrared wavelengths than previous models. In addition to inheriting some of the unique features of Sony’s XCD Series such as Bulk Trigger and Sequential Trigger modes, the XCG-H280E features a full-HD high frame rate image-transfer capability with 8-, 10-, or 12-bit video data output.

The XCG-H280E incorporates the GigE Vision® interface standard based on Gigabit Ethernet technology. In response to the growing demand for large-scale systems, this interface enables the camera to transfer a large amount of data over long distances. The use of an Ethernet cable and the availability of a wide variety of peripheral devices contribute to significant cost-cutting benefits when designing a complete vision system.

By utilizing the features and benefits of the GigE Vision interface, the XCG-H280E camera is ideally suited to the demanding requirements of ITS (Intelligent Transportation Systems) and machine-vision applications.


  • 2/3-type Progressive Scan EXview HADII CCD
  • GigE Vision Ver 1.2 compliant Interface
  • 32 fps Full-HD (1920 x 1080) frame rate
  • Variety of trigger modes
  • Power on LED settings
  • Sony Image Filter Dedicated Driver
  • XML File (GeniCam Compliance)
  • Bulk Trigger Mode and Sequential Trigger Mode
  • High Shock and Vibration Resistance

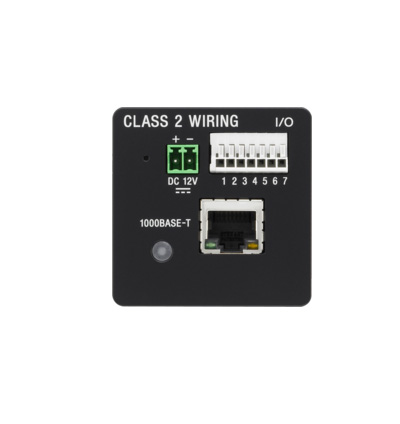

  • Connectors: RJ-45 (locking - 20mm pitch), Power/Gnd connector, I/O connector block (trigger-in (2), GPI (2), GPO (2), GND)
  • Compact & LIghtweight: 50 x 50 x 57.5 mm/200g

Download Product PDF:


  • Image sensor: 2/3-type progressive scan IT CCD
  • Standard output pixels: 1.820H x 1.060V
  • Standard frame rate: 32fps
  • Cell size (H x V): 4.54 x 4.54 μm
  • Minimum illumination: 0.5 lx (F1.4, +18 dB, Shutter: OFF)
  • Sensitivity: 400 lx at F8 (0 dB)
  • Gain: Auto, Manual : 0 dB to +18 dB
  • Shutter speed: 2 sec to 1/100,000 sec
  • Video output resolution depth: 8, 10, 12-bit digital
  • Readout modes: Normal, Binning, Partial Scan
  • Readout features: Gamma (variable), Built-in test pattern
  • Synchronization: Hardware trigger / Software trigger
  • Trigger modes: Trigger start, Trigger start and and exposure duration, Bulk and Sequential trigger mode
  • Memory channel: 16 channels for parameter settings
  • User memory: 64 Byte x 16 ch
  • Video data output: Gigabit Ethernet (1000Base-T) 8, 10, 12-bit
  • Digital I/Os: TTL IN (2x), TTL OUT (2x)
  • Lens: mount C mount
  • Power requirements: DC +12 V (+10.5 V to +15.0 V)
  • Power consumption: 5.3 W
  • Operating temperature: 14°F to 122°F (-10°C to +50°C)
  • Storage temperature: -22°F to +140°F (-30°C to +60°C)
  • Operating humidity: 20% to 80% (no condensation)
  • Storage humidity: 20% to 95% (no condensation)
  • Vibration resistance: 70 G
  • Dimensions (W x H x D): 2 x 2 x 2 3/8 inches (50 x 50 x 57.5 mm) (Not including protruding parts)
  • Weight: 7.0 oz (200 g)

Request a Quote

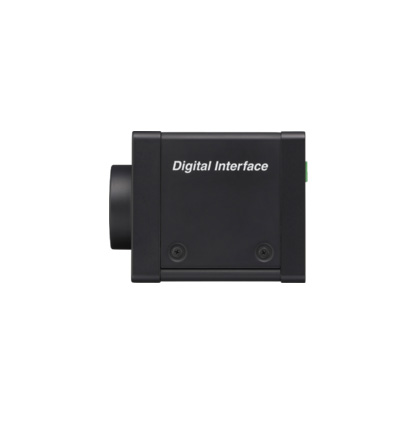

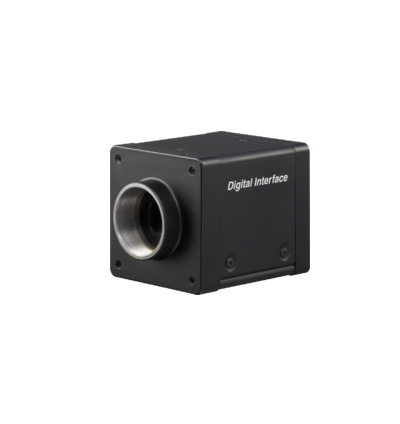

Product image of Sony XCG-H280E
Product image of Sony XCG-H280E
Product image of Sony XCG-H280E
Product Photos
Product image of  Sony XCG-H280E Product image of  Sony XCG-H280E Product image of  Sony XCG-H280E

Quick Info for the Sony XCG-H280E

Camera Category: Area Scan
Camera Series: Machine Vision
FPS: 32
Interface: GigE
Manufacturer: Sony
Resolutions: 2 MP
Scanning Mode: Progressive Scan
Signal System: Monochrome
Technology: GigE Cameras
