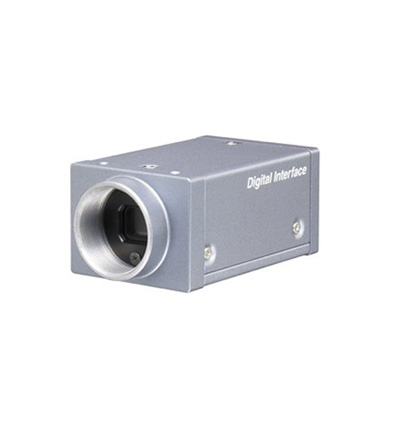

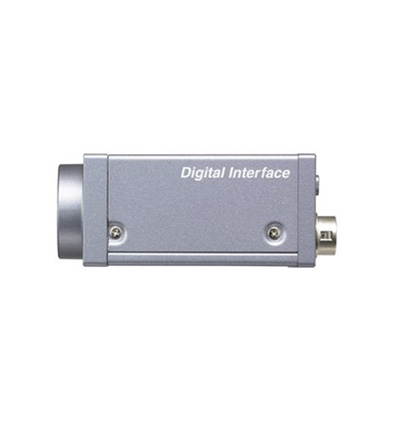

Sony XCG-SX97E Camera

XCG-SX97E incorporates GigE Vision interface

Sony continues to be on the cutting edge of camera technology with the latest addition to its industrial camera line up - The XCG GigE Series. The XCG-SX97E incorporates the GigE Vision interface which is specifically standardized for machine vision applications based on Gigabit Ethernet Technology. The GigE interface enables the camera to transfer a large amount of data over long distances.

The use of an Ethernet cable and availability of a wide variety of peripheral devices contribute to significant cost-cutting benefits when designing a complete vision system. Moreover, by incorporating a packet re-send mechanism, the XCG-SX97E can securely transmit data to the host computer. The C-mounted camera measures 44 x 33 c 67.5mm, delivers a resolution depth of up to 12 bits per pixel with a shutter speed of 2 to 1/100,000 and enables 0-18dB of gain control with 0-6dB of digital gain.

FEATURES:

• Sony 2/3 Progressive Scan IT CCD
• GigE Vision Compliant (Ver 1.0)
• Up to 16 fps
• Variety of Trigger Modes
• Power on LED Settings
• XML File (GenICam Compliance)

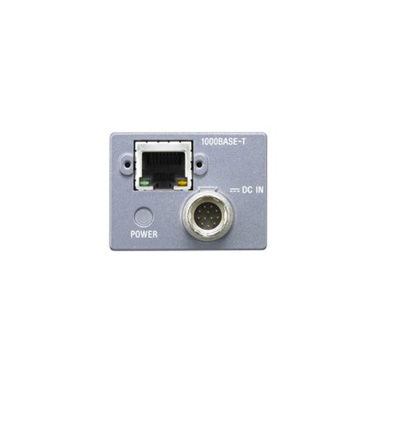

• Two connectors: RJ-45 (locking-20mm pitch), EIAJ-12 pin (power, trigger-in, strobe-out, isolated digital I/O)
• Compact and Lightweight
• High Shock and Vibration Resistance

TECHNICAL INFORMATION:

• Cell Size: 6.45 x 6.45 µm
• Frame Rate: 16 fps
• Frame Rate Value: 16 fps
• Gain:
  Manual 0 to + 18dB
  Auto gain
  Digital Gain (1x to 2x)
• Image Device: 2/3-type progressive scan IT CCD
• Image Size: 1360 x 1024
• Lens Mount: C-mount
• Memory Channel: 16 channels
• Readout Features:
  Binnarization
  Gamma Correction (LUT)
  Built-in test pattern
• Resolution: 1360 x 1024
• Resolution Depth: 8/10/12 bits/pixel
• Dimensions (W x H x D): 1 3/4 x 1 5/16 x 2 3/8 inches (44 x 33 x 57.5 mm)
• Operating Humidity: 20 to 80% (no condensation)
• Operating Temperature: -5 to 45°C (23 to 113°F)
• Power Consumption: 3.1 W
• Power Requirements: DC +10.5 to +15.0 V
• Shock Resistance: 70 G
• Storage Humidity: 20 to 95% (no condensation)
• Storage Temperature: -30 to 60°C (-22 to 140°F)
• Vibration Resistance: 10 G (20 Hz to 200 Hz)
• Weight: Less than 5 3/4 oz (145 g)
