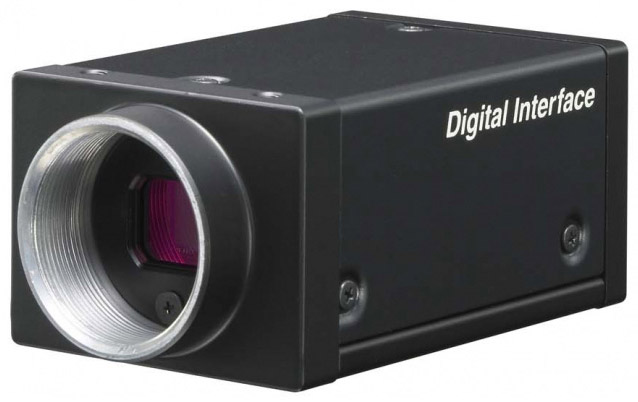

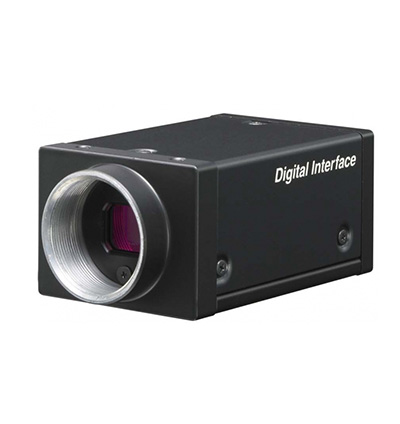

Sony XCG-U100 Camera

XCG-U1005CR high speed GigE camera is ideal for Intelligent Traffic, Machine Vision, and Industrial applications

Sony is expanding its high-performance XCG GigE camera line-up with the addition of the new high speed, raw color model – the XCG-U100CR. Featuring Full Progressive Scan, Complementary Color Mosaic Color Filter, and High Sensitivity, the new XCG-U1005CR high speed GigE camera is ideal for Intelligent Traffic, Machine Vision, and Industrial applications.

1/1,8-type Progressive Scan IT CCD Raw Color GigE Camera

FEATURES:

• Sony 1/1.8-type progressive scan IT CCD
• GigE Vision Compliant (Ver 1.0)
• Up to 15 fps
• Variety of Trigger Modes
• Power on LED Settings
• XML File (GenICam Compatible)

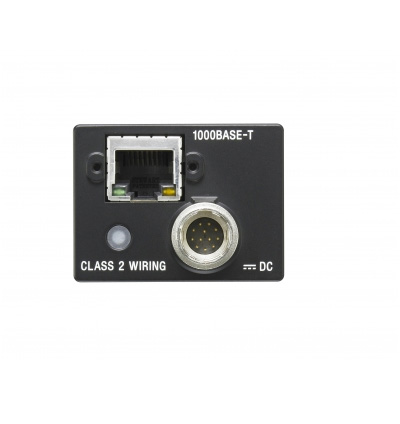

• Two connectors: RJ-45 (locking-20mm pitch)
• EIAJ-12 pin (power, trigger-in, strobe-out, isolated digital I/O)
• High Shock and Vibration Resistance
• Compact and Lightweight

Download Product PDF:

• Sony XCG-U100 Camera

TECHNICAL INFORMATION:

• Binning: Vertical (1 x 2)
• Cell Size: 4.4 x 4.4 µm
• Effective Pixels: 1600 x 1200
• Frame Rate: 27 fps
• Gain:
  Manual 0 to + 18dB
  Auto gain
• Image Device: 1/1.8-type Progressive Scan IT CCD
• Image Device Value: Complementary color mosaic
• Lens Mount: C-mount
• Output Image Size: 1600 x 1200 pixels
• Partial Scan: Vertical/Horizontal
• Resolution: UXGA (1600 x 1200)
• Sensitivity: 2000 lx at F5.6 (0dB)
• Trigger Shutter: 2 to 1/10,000 s
• Dimensions (W x H x D): 44 x 33 x 67.5 mm (1 3/4 x 1 5/16 x 2 3/4 inches)
• Operating Humidity: 20 to 80% (no condensation)
• Operating Temperature: -10° to +50° C
• Power Consumption: 3.5 W
• Power Requirements: DC +12 V (+10.5 to +15.0V)
• Shock Resistance: 70 G
• Storage Humidity: 20 to 95% (no condensation)
• Storage Temperature: -30 to 60°C (-22 to 140°F)
• Vibration Resistance: 10G (20Hz to 200Hz)
• Weight: 145 g
