XCG-V60E incorporates the GigE Vision interface

Sony continues to be on the cutting edge of camera technology with the latest addition to its industrial camera line up - The XCG GigE Series. The XCG-V60E incorporates the GigE Vision interface which is specifically standardized for machine vision applications based on Gigabit Ethernet Technology. The GigE interface enables the camera to transfer a large amount of data over long distances. The use of an Ethernet cable and availability of a wide variety of peripheral devices contribute to significant cost-cutting benefits when designing a complete vision system. Moreover, by incorporating a packet re-send mechanism, the XCG-V60E can securely transmit data to the host computer. The C-mounted camera measures 44 x 33 c 67.5mm, delivers a resolution depth of up to 12 bits per pixel with a shutter speed of 1/100,000 and enables 0-18dB of gain control with 0-6dB of digital gain.


  • 1/3 type Progressive Scan IT CCD
  • 1000BASE-T (GigE Vision Compatible)
  • 90 fps, VGA Resolution
  • Variety of Trigger Modes
  • Power on LED Settings
  • Sony Image Filter Dedicated Driver
  • XML File (GenICam Compliance)
  • Two connectors: RJ-45 (locking-20mm pitch), EIAJ-12 pin (power, trigger-in, strobe-out, isolated digital I/O)
  • Bulk Trigger Mode and Sequential Trigger Mode
  • High Shock and Vibration Resistance
  • Compact and Lightweight


  • Cell Size: 7.4 x 7.4 µm
  • Frame Rate: 90 fps
  • Frame Rate Value: 90 fps
  • Gain:
    Manual 0 to + 18dB
    Auto gain
  • Image Device: 1/3-type progressive scan IT CCD
  • Image Device Value: Monochrome
  • Image Size: 640 x 480 (VGA)
  • Lens Mount: C-mount
  • Memory Channel: 16 channels
  • Readout Features:
    Gamma Correction (LUT)
    Built-in test pattern
  • Resolution: VGA (640 x 480)
  • Resolution Depth: 8/10/12 bits/pixel
  • Dimensions (W x H x D): 1 3/4 x 1 5/16 x 2 3/4 inches (44 x 33 x 67.5 mm)
  • Operating Humidity: 20 to 80% (no condensation)
  • Operating Temperature: -5 to 45°C (23 to 113°F)
  • Power Consumption: 3.1 W
  • Power Requirements: DC +10.5 to +15.0 V
  • Shock Resistance: 70 G
  • Storage Humidity: 20 to 95% (no condensation)
  • Storage Temperature: -30 to 60°C (-22 to 140°F)
  • Vibration Resistance: 10 G (20 Hz to 200 Hz)
  • Weight: Less than 5 3/4 oz (145 g)

Request a Quote

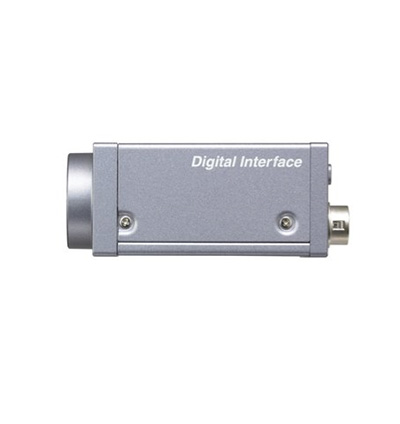

Product image of Sony XCG-V60E
Product image of Sony XCG-V60E
Product image of Sony XCG-V60E
Product Photos
Product image of  Sony XCG-V60E Product image of  Sony XCG-V60E Product image of  Sony XCG-V60E

Quick Info for the Sony XCG-V60E

Camera Category: Area Scan
Camera Series: Machine Vision
FPS: 90
Interface: GigE
Manufacturer: Sony
Resolutions: Under 1 MP
Scanning Mode: Progressive Scan
Signal System: Monochrome
Technology: GigE Cameras
