Zoom Image XCL5005 5 Mega Pixel PoCL B/W Digital Video Camera

Sony's high resolution XCL-5005 monochrome video camera incorporates a new Sony 2/3-type Progressive Scan CCD sensor with square pixels. This 5-Megapixel CCD camera provides exceptional picture quality( 2,448 x 2,050 pixels) and captures video at 15 frames per second. This camera adopts the AIA PoCL standard (Power over Camera Link) and features auto-selectable power from an EIAJ or PoCL connector.

The XCL-5005 also features a multitude of functions such as vertical and horizontal partial scanning, built-in real-time hardware pre-processing, and flexible high-speed outputs. These functions are extremely beneficial to machine vision applications including large part inspection, PCB inspection, semi-mounting and bonding machinery and microscopy.

The XCL-5005 is compatible with a wide variety of commercially available Camera Link frame grabbers.


  • New 2/3 type Progressive Scan CCD image sensor
  • Approximately 5 mega pixel resolution
  • Auto-selectable power from EIAJ or PoCL connector
  • 2,456 x 2,058 effective picture elements
  • 2448 x 2050 pixels
  • 15 full frames/sec
  • High Sensitivity - 400 lux @ F5.6
  • Compact & Lightweight: 44 (W) x 44 (H) x 57.5 (D) / 150g
  • External Trigger Shutter: 2 to 1/10,000 sec
  • Synchronization Signal: Internal/External (HD/VD)
  • Partial Scanning & Binning Functions
  • High Shock and Vibration Resistance

Download Product PDF:


  • Image Device: 2/3-type PS IT CCD
  • Image Device Value: Monochrome
  • Effective Pixels: 2448 x 2050 (5,018,400 pixels)
  • Cell Size: 3.45 x 3.45 µm
  • Output Image Size: 2448 x 2050 pixels
  • Sensitivity: F5.6 at 400 lx (0 dB)
  • Resolution: Resolution depth: 8/10/12 bits/pixel
  • Lens Mount: C mount
  • Frame Rate: 15 fps
  • Output Data Clock: 80 MHz (1 Tap); 40 MHz (2 Taps)
  • Gain: 0 to +18 dB
  • Trigger Shutter: Speed:2 to 1/10,000 s;Mode:External Trigger Shutter(Trigger start/Trigger start & exposure duration)
  • Dimensions (W x H x D): 1 3/4 x 1 3/4 x 2 3/8 inches
  • Weight: 4.6 oz (130 g)

Request a Quote

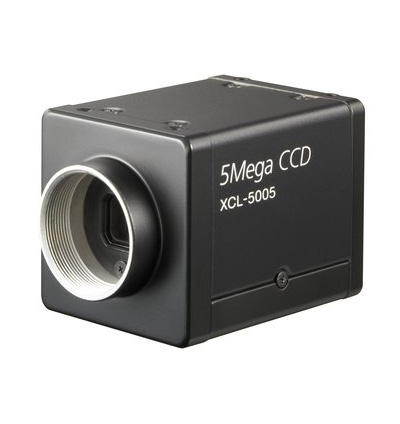

Product image of Sony XCL-5005
Product Photos
Product image of  Sony XCL-5005

Quick Info for the Sony XCL-5005

Camera Category: Progressive Scan
Camera Series: Machine Vision
FPS: 15
Interface: Camera Link
Manufacturer: Sony
Resolutions: 5 MP
Scanning Mode: -
Signal System: Digital Monochrome
Technology: Camera Link Cameras

Quick Info for the Sony XCL-5005CR

Camera Category: Area Scan
Camera Series: Machine Vision
FPS: 15
Interface: Camera Link
Manufacturer: Sony
Resolutions: 5 MP
Scanning Mode: Progressive Scan
Signal System: Color
Technology: Camera Link Cameras
