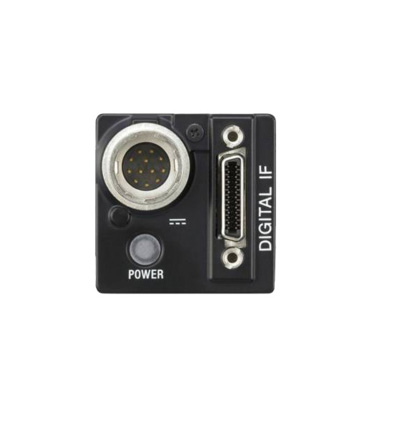

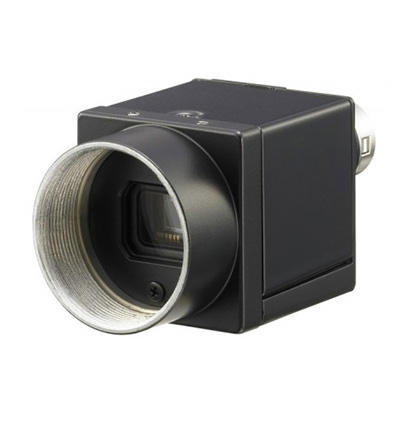

Sony XCL-C130 Camera

SXGA Progressive Scan PoCL (Power over Camera Link) Camera

Sony has made it easier than ever for customers to migrate from analog to digital with the introduction of the new monochrome PoCL camera, the XCL-C130. Featuring SXGA resolution of 1,296 x 966 effective pixels, this camera offers exciting new options for a wide array of applications, including Intelligent Transportation Systems, machine vision and sports shooting. The XCL-C130 camera is equipped with several unique features, including Shading Correction, Defect Correction and Temperature Readout.

FEATURES

• Shading Correction: Minimizes uneven image intensity caused by lighting cond
• Defect Correction: Automatically minimizes defective pixels directly inside the camera.
• Temperature readout: Eliminates the need for a separate sensor and simplifies system configuration.
• Memory Channel: Up to 16 sets of camera parameters can be stored in addition to the factory default settings.
• Bulk Trigger Modes: Allows the camera to capture up to 16 images in rapid succession using a single hardware or software trigger.
• Sequential Trigger Mode: Allows the camera to capture a single image using successive setups stored in the memory channel.

TECHNICAL INFORMATION:

• Image Device: 1/3-type progressive scan IT CCD
• Effective Pixels: 1,296 x 966
• Cell size: 3.75µm x 3.75µm
• Output Image Size: 1,280 x 960
• Sensitivity: F5.6 (400 lx, Gain: 0 dB)
• Lens Mount: C Mount
• Frame Rate: 31 fps
• Gain: Auto, Manual: 0 dB to +18 dB
• Trigger Shutter: 2 s to 1/100,000 s
• Partial Scan: H: 16 to 1296 V: 2 to 1966 Steps of 2
• Binning: 2 x 1, 1 x 2, 2 x 2
• Minimum Illumination: 0.5 lx (Iris: F1.4, Gain: +18 dB, Shutter: 1/30 s)
• Dimensions (W x H x D): 29 x 29 x 30 mm (1 3/16 x 1 3/16 x 1 3/16 in)
• Weight: 56 g (2.0 oz)
• Operating Temperature: -5°C to +45° C (23°F to +140°F)
• Storage Temperature: -30°C to +60°C (22°F to +140°F)
• Operating Humidity: 20% to 80% (no condensation)
• Storage Humidity: 20% to 95% (no condensation)
• Vibration Resistance: 10 G (20 Hz to 200 Hz)
• Shock Resistance: 70 G
