2.8M Progressive Scan PoCL (Power over Camera Link) Camera

Sony has made it easier than ever for customers to migrate from analog to digital with the introduction of the new monochrome PoCL camera, the XCL-C280. Featuring 2.8M resolution of 1,940 x 1,460 effective pixels, this camera offers exciting new options for a wide array of applications, including Intelligent Transportation Systems, machine vision and sports shooting. The XCL-C280 camera is equipped with several unique features, including Shading Correction, Defect Correction and Temperature Readout. In addition, the XCL-C280 features Near-Infrared Sensitivity, utilizing Sony's EXview HAD CCD II technology


  • Near-Infrared Sensitivity: Utilizing Sony's EXview HAD CCD II technology, the XCL-C280 camera captures clear images in NIR wavelengths.
  • Shading Correction: Minimizes uneven image intensity caused by lighting conditions.
  • Defect Correction: Automatically minimizes defective pixels directly inside the camera.
  • Temperature readout: Eliminates the need for a separate sensor and simplifies system configuration
  • Memory Channel: Up to 16 sets of camera parameters can be stored in addition to the factory default settings.
  • Bulk Trigger Modes: Allows the camera to capture up to 16 images in rapid succession using a single hardware or software trigger.
  • Sequential Trigger Mode: Allows the camera to capture a single image using successive setups stored in the memory channel.


  • Image Device: 1/1.8-type progressive scan IT CCD
  • Effective Pixels: 1,940 x 1,460
  • Cell size: 3.69µm x 3.69µm
  • Output Image Size: 1,920 x 1,440
  • Sensitivity: F5.6 (400 lx, Gain: 0 dB)
  • Lens Mount: C Mount
  • Frame Rate: 26 fps
  • Gain: Auto, Manual: 0 dB to +18 dB
  • Trigger Shutter: 2 s to 1/100,000 s
  • Partial Scan: H: 16 to 1940 V: 2 to 1460 Steps of 2
  • Binning: 2 x 1, 1 x 2, 2 x 2
  • Minimum Illumination: 0.5 lx (Iris: F1.4, Gain: +18 dB, Shutter: 1/25 s)
  • Dimensions (W x H x D): 29 x 29 x 30 mm (1 3/16 x 1 3/16 x 1 3/16 in)
  • Weight: 56 g (2.0 oz)
  • Operating Temperature: -5°C to +45° C (23°F to +140°F)
  • Storage Temperature: -30°C to +60°C (22°F to +140°F)
  • Operating Humidity: 20% to 80% (no condensation)
  • Storage Humidity: 20% to 95% (no condensation)
  • Vibration Resistance: 10 G (20 Hz to 200 Hz)
  • Shock Resistance: 70 G

Request a Quote

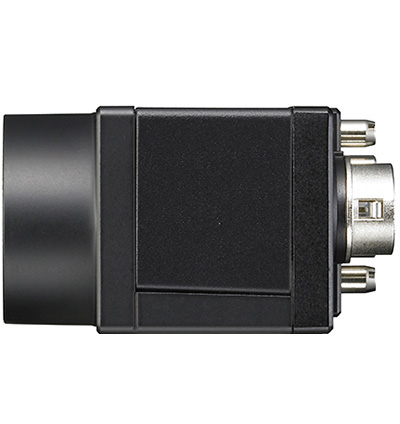

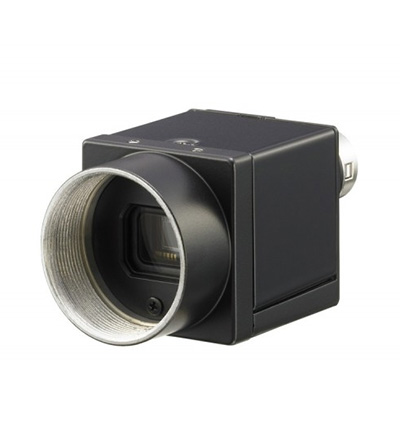

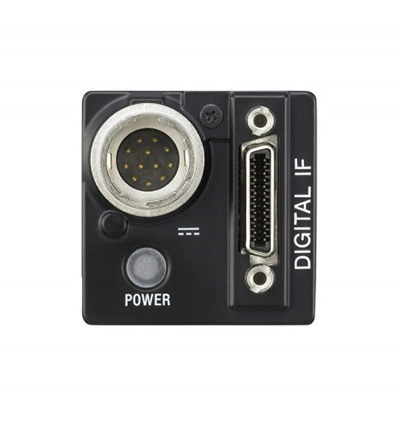

Product image of Sony XCL-C280
Product image of Sony XCL-C280
Product image of Sony XCL-C280
Product Photos
Product image of  Sony XCL-C280 Product image of  Sony XCL-C280 Product image of  Sony XCL-C280

Quick Info for the Sony XCL-C280

Camera Category: Area Scan
Camera Series: Machine Vision
FPS: 26
Interface: Camera Link
Manufacturer: Sony
Resolutions: 2.8 MP
Scanning Mode: Progressive Scan
Signal System: Monochrome
Technology: Camera Link Cameras
