Ultra-compact XCL-U100 monochrome High Resolution Power over CameraLink (PoCL) Video Camera.

The Sony XCL-U100 incorporates a 1/1.8-type progressive scan IT CCD that captures outstanding UXGA resolution images at 15 frames per second. In addition, the XCL-U100 conforms to the AIA's PoCL (power over CameraLink) standard and accepts power from an EIAJ or PoCL connector, and power can be provided with the same connector for a more streamlines back-end solution. One Cable For Power and Video!


  • UXGA High Resolution Image Capture at 15 fps
  • 1/1.8 type progressive scan CCD with square pixels
  • High Sensitivity: 400 lux @ F5.6
  • Conforms to Camera Link Standard
  • Ultra-compact and lightweight: 29 (w) x 29 (H) x 30 (D) mm/ 55 g
  • DSP Hardware processing function: Digital Clamp/Pedestal, Digital Gain, 3x3 Filter, Gamma Correction, Binarization
  • C-Mount
  • High shock and vibration resistance

Download Product PDF:


  • Image Device: 1/1.8 type Progressive Scan IT CCD
  • Image Device Value: Monochrome
  • Effective Pixel: 1600 x 1200
  • Cell Size: 4.4 x 4.4 μm
  • Output Image Size: 1600 x 1200 pixels
  • Sensitivity: F5.6 at 400 lx
  • Resolution: UXGA (1600 x 1200)
  • Lens Mount: C-mount
  • Frame Rate: 15 fps
  • Output Data Clock: 36 MHz (1 tap)
  • Gain: 0 to +18 dB
  • Trigger Shutter: 2 to 1/10,000 s
  • Partial Scan: Vertical/Horizontal
  • Binning: Vertical (1 x 2)
  • Sync System: Internal
  • Detail: ON/OFF
  • Minimum Illumination: 1 lx (GAIN + 18 dB, F1.4)
  • Video Output: DVAL/EXPOSURE/GND output (selectable)
  • Dimensions (W x H x D): 29 x 29 x 30 mm (1 3/16 x 1 3/16 x 1 3/16 inches)
  • Operating Temperature: -5o
  • Storage Temperature: -30o
  • Vibration Resistance: 10G (20Hz to 200Hz)
  • Shock Resistance: 70 G
  • Power Consumption: 2.2 W

Request a Quote

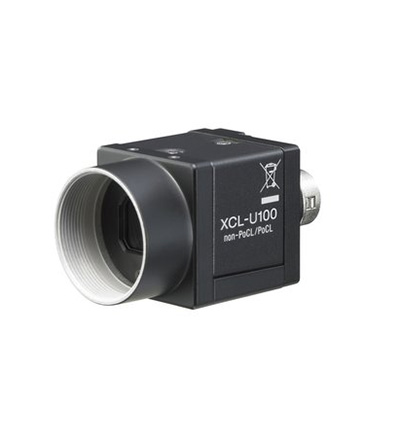

Product image of Sony XCL-U100

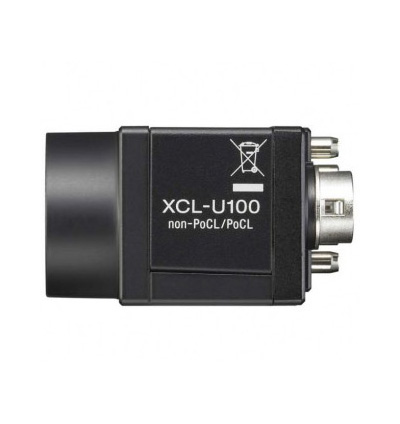

Product image of Sony XCL-U100

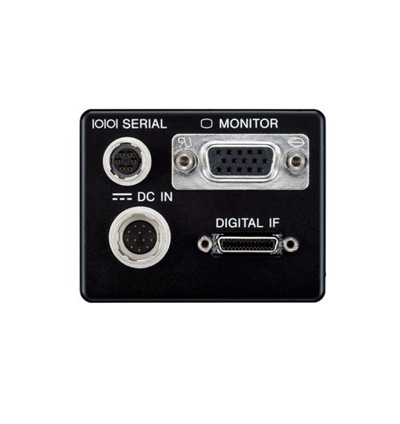

Product image of Sony XCL-U100
Product Photos
Product image of  Sony XCL-U100 Product image of  Sony XCL-U100 Product image of  Sony XCL-U100

Quick Info for the Sony XCL-U100

Camera Category: Area Scan
Camera Series: Machine Vision
FPS: 15
Interface: Camera Link
Manufacturer: Sony
Resolutions: 1.9 MP
Scanning Mode: Progressive Scan
Signal System: Monochrome
Technology: Camera Link Cameras
