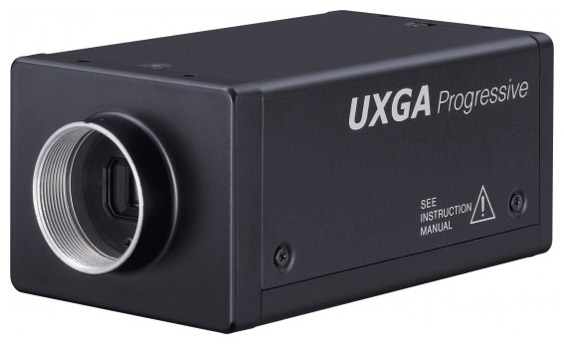

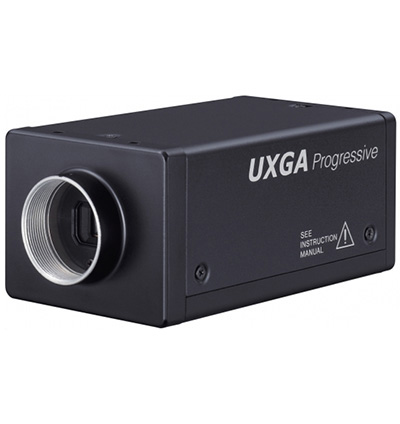

Sony XCL-U1000 Camera
Get a Quote for the Sony XCL-U1000
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
XCL-U1000
XCL-U1000C
XCL-U1000 camera incorporates a 1/1.8 type progressive scan CCD that produces detailed, UXGA resolution images (1,600 x 1,200 pixels)
Designed to capitalize on all the benefits of digital technology and to minimize the connectivity challenges, Sony has introduced a new line up of digital Camera Link® compatible cameras. The XCL-U1000 camera incorporates a 1/1.8 type progressive scan CCD that produces detailed, UXGA resolution images (1,600 x 1,200 pixels). Sony's new XCL-U1000 camera is equipped with a digital video interface that conforms to the Camera Link industry standard and captures high-speed, high-resolution images while simplifying connectivity to machine vision systems with its MDR 26-pin cable.
FEATURES:
- High-resolution image capture - UXGA image (1,600 x 1,200 pixels) captures video at 15 fps
- 1/1.8 type progressive scan CCD with square pixels
- Effective picture elements: 1,600 (H) x 1,200 (V)
Download Product PDF:
TECHNICAL INFORMATION:
- Image Device: 1/1.8 type Progressive Scan IT CCD
- Effective Pixel Elements: 1628 x 1236
- Output Image Size: 1,600 x 1,200 pixels
- Cell Size: 4.4 x 4.4 µm (H/V)
- Sensitivity: 400 lx at F5.6
- Sync system: Internal
- Lens mount: C mount
- Frame rate: 15 fps
- Output data clock: 36 MHz
- Gain: 0 to +18 dB
- Gamma: ON/1 (fixed)
- Trigger shutter: 1/15 to 1/10,000 s
- Partial scan: Vertical ON/OFF
- Binning: Vertical +2Line
- Minimum Illumination: 2 lx or less
- Video Output: Digital (conforms to Camera Link standard) 10 bits
- Detail: ON/OFF
- Power Requirements: DC12V
- Power Consumption: 5.5 W or less
- Dimensions (WxHxD): 44 x 56 x 95 mm (1 3/4 x 2 1/4 x 3 3/4 inches)
- Mass: 250 g (9 oz)
- Operating Temperature: -5 to 45 degrees C (23 to 113 degrees F)
- Storage Temperature: -30 to 60 degrees C (-22 to 140 degrees F)
- Operating humidity: 20 to 80% (no condensation)
- Storage humidity: 20 to 95% (no condensation)
- Vibration resistance: 10G (20Hz to 200Hz)
- Shock resistance: 70 G
- Supplied Accessories: Lens mount cap (1), Operating instructions (1)
Quick Info for the Sony XCL-U1000
Camera Category: | Area Scan |
---|---|
Camera Series: | Machine Vision |
FPS: | 15 |
Interface: | Camera Link |
Manufacturer: | Sony |
Resolutions: | 2 MP |
Scanning Mode: | Progressive Scan |
Signal System: | Monochrome |
Technology: | Camera Link Cameras |
Quick Info for the Sony XCL-U1000C
Camera Category: | Area Scan |
---|---|
Camera Series: | Machine Vision |
FPS: | 15 |
Interface: | Camera Link |
Manufacturer: | Sony |
Resolutions: | 2 MP |
Scanning Mode: | Progressive Scan |
Signal System: | Color |
Technology: | Camera Link Cameras |
