Sony introduces the XCU-CG160 USB Global Shutter CMOS S camera.

The XCU-CG160 (black & white) and XCU-CG160C (color) combines the best of Sony technology in a convenient form factor which is optimized for use within both the Industrial Vision and non-manufacturing vision markets. The XCU-CG160 draws upon Sony's market leading Global Shutter CMOS sensor technology, combining the IMX273 1.6MP sensor with SXGA resolution with a rich heritage of complete camera technology, bringing the best combination of performance and quality from a brand you can trust.

The XCU-CG160 incorporates the latest Pregius GSCMOS sensor providing the best combination of resolution and frame tailored for use in production and inspection environments where USB3.0 Vision is the preferred architecture.

The XCU-CG160 provides a simple migration path from CCD to GSCMOS without necessarily having to upgrade or change architecture. The IMX273 shares comparable sensor and pixel size characteristics with the well regarded Sony ICX445, but offers huge technological improvements in sensitivity, dynamic range, noise reduction and frame rate capability.

The XCU-CG160 has a resolution of 1456 (H) x 1088 (V) (effective pixels) with a frame rate of over 100fps and supports USB3.0 Vision 1.0.1 interface.

Download Product PDF:


  • Sony IMX273 1.6MP
  • Over 100 fps
  • Compact size
  • USB3.0 Vision 1.0.1
  • Area Gain
  • Advanced Image Processing
  • Defect Pixel Correction
  • Shading Correction

Request a Quote

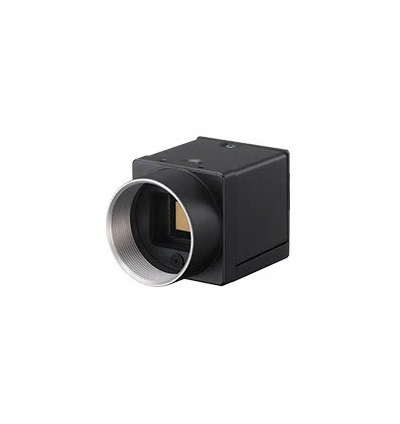

Product image of Sony XCU-CG160
Product Photos
Product image of  Sony XCU-CG160

Quick Info for the Sony XCU-CG160

Camera Series: Machine Vision
FPS: 100
Interface: USB 3.0
Manufacturer: Sony
Signal System: Monochrome
Technology: USB3 Vision Cameras

Quick Info for the Sony XCU-CG160C

Camera Series: Machine Vision
FPS: 100
Interface: USB 3.0
Manufacturer: Sony
Signal System: Color
Technology: USB3 Vision Cameras
