Teledyne BFS Board-level USB3: 3.2 MP, Color Camera

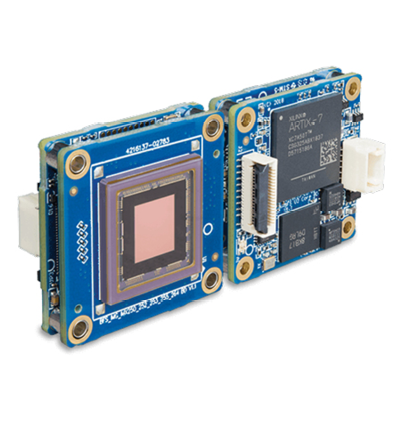

The Blackfly S Board-Level USB3 (3.2 MP, Color) is a compact, high-performance area scan camera designed for easy integration into embedded vision systems and space-limited applications. Delivering the same robust feature set and sensor technology as its full-housing counterpart, this board-level model offers advanced color imaging capabilities in a lightweight, flexible form.

Ideal for OEMs developing custom vision solutions, the BFS-U3-31S4C-BD2 supports seamless integration with popular SBCs and SOMs, enabling the creation of smaller, more cost-effective imaging systems. With reliable USB3 connectivity, rich on-camera processing, and industry-proven performance, it’s a versatile solution for embedded machine vision, portable diagnostics, and robotics applications.

TECHNICAL INFORMATION:

• Megapixels: 3.2 MP
• Frame Rate: 55 FPS
• Sensor: Sony IMX265
• Acquisition Modes: Continuous / Single Frame / Multi Frame
• Exposure Control: Hardware trigger, programmable via camera API, automatic
• Exposure Range: 25 µs to 30 seconds
• Flash Memory: 6 MB non-volatile memory
• Gain Control: Manual, automatic (AGC)
• Image Buffer: 240 MB
• Image Processing: Color correction matrix, gamma, lookup table, saturation, and sharpness
• Partial Image Modes: Pixel binning, decimation, ROI
• User Sets: 2 user configuration sets for custom camera settings
• White Balance: Manual, automatic (AWB)
