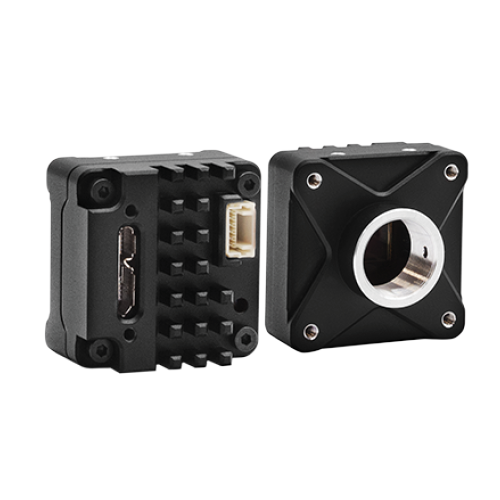

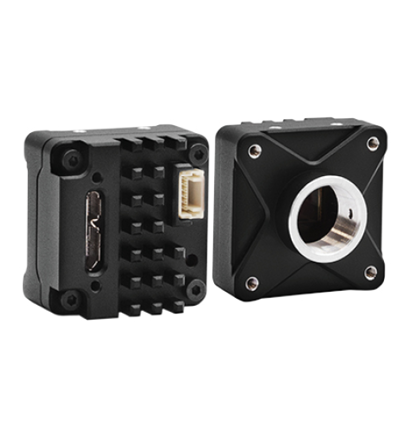

Teledyne DR USB3: 5 MP, Mono, S-mount, Back Camera

The DR USB3: 5 MP, Mono, S-mount, Back camera is a compact and versatile imaging solution designed for applications requiring high precision and efficiency. With its modular design and lightweight form factor, this camera is ideal for embedded systems, handheld devices, and multi-camera configurations. Engineered for scalability, it supports volume-based applications and streamlined integration into manufacturing, medical imaging, and automation environments.

Equipped with a high-quality 5 MP monochrome sensor, the DR USB3 delivers sharp, detailed images suited for biometrics, optical inspection, 3D scanning, and life science instrumentation. Its S-mount lens compatibility provides flexibility in lens selection, allowing customization to specific application needs. The USB3 interface ensures fast, reliable data transfer, while its compact design minimizes space requirements, making it an optimal choice for space-constrained installations.

TECHNICAL INFORMATION:

• Frame Rate: 49 FPS
• Configuration: Cased, Back Connector, S-mount
• Sensor: onsemi AR0521
• Acquisition Modes: Continuous / Single Frame / Multi Frame
• Exposure Control: Hardware trigger, programmable via camera API, automatic
• Exposure Range: 9 µs to 0.5 seconds
• Flash Memory: 6 MB
• Gain Control: Manual, automatic (AGC)
• Image Buffer: 96 MB
• Image Processing: Gamma, lookup table
• Partial Image Modes: Pixel binning, ROI
• User Sets: 1
• White Balance: Manual, automatic (AWB)
