Teledyne FG-PGE-50S5M-C-IP Camera

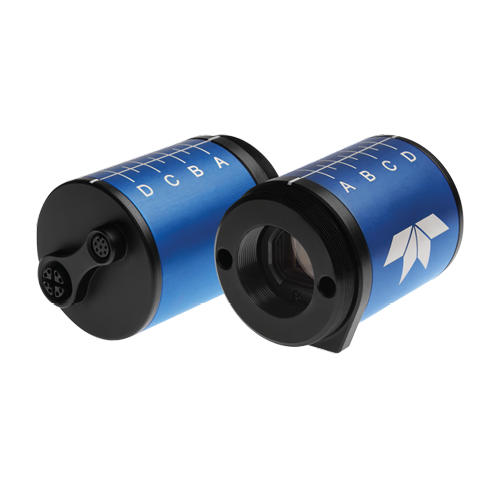

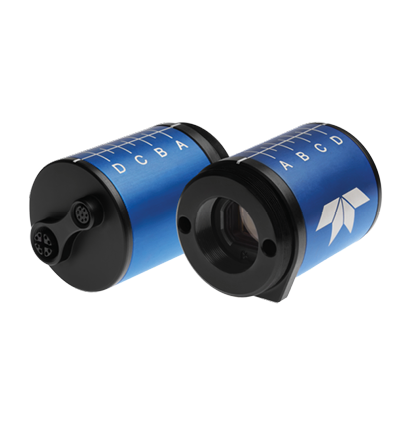

The FG-PGE-50S5M-C-IP from the Forge 1GigE IP67 series combines robust imaging performance with a durable, industrial-grade enclosure designed to withstand harsh environments. Its IP67-rated housing offers complete protection against dust and moisture, making it ideal for challenging conditions such as food processing, smart agriculture, and industrial automation. With a compact footprint and 5 MP resolution, it provides a cost-effective upgrade for legacy 1GigE systems without increasing system complexity.

This camera features advanced image processing capabilities—including auto-brightness control for variable lighting—along with Lossless Compression (LLC) to boost frame rates while conserving bandwidth. IEEE1588 support enables precise multi-camera synchronization for time-sensitive applications. Fully compatible with Teledyne’s Spinnaker SDK and other GigE Vision software, the FG-PGE-50S5M-C-IP offers a reliable and scalable solution for high-speed, high-precision industrial imaging.

TECHNICAL INFORMATION:

• Megapixels: 5 MP
• Frame Rate: 24 FPS / 33 FPS with Lossless Compression
• Sensor: Sony IMX264
• Exposure Control: Hardware trigger, programmable via camera API, automatic
• Exposure Range: 27 µs to 30 seconds
• Flash Memory: 6 MB non-volatile memory
• Gain Control: Manual, automatic (AGC)
• Image Buffer: 240 MB
• Image Processing: Color correction matrix, gamma, lookup table, saturation, and sharpness
• Partial Image Modes: Pixel binning, decimation, ROI
• User Sets: 2 user configuration sets for custom camera settings
