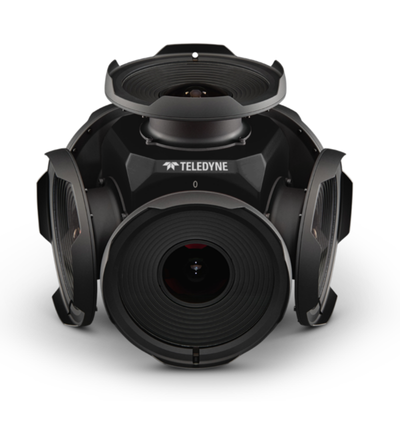

Teledyne Ladybug6 USB3: 72 MP, Black Camera

The Ladybug6 USB3 is a high-performance, 72 MP spherical imaging system built for capturing precise 360-degree visuals from moving platforms in any weather. Engineered for demanding environments, its rugged industrial-grade construction and factory-calibrated optics ensure spatial accuracy within ±2 mm at a 10-meter range. With seamless USB3 connectivity and out-of-the-box performance, the Ladybug6 is the trusted solution for mobile mapping, autonomous navigation, and geospatial data collection.

TECHNICAL INFORMATION:

Resolution: 12,288 x 6,144 (72 MP)
Frame Rate:
    •    Up to 15 FPS at full 72 MP resolution
    •    Up to 29.9 FPS at 36 MP resolution
IP Rating: IP67 for protection against dust and water
Acquisition Modes:
    •    Standard
    •    Bulb
    •    Skip frames
    •    Overlapped exposure
    •    Multi-shot trigger
Exposure Range: 0.02 ms to 2 seconds
Non-Volatile Memory: 1 MB flash storage
Advanced Image Processing:
    •    Luminance Control: Adjustable black level and exposure
    •    Tonal Adjustments: Gamma correction and tone mapping
    •    Color Enhancements: White balance, saturation, leveling, noise reduction, sharpening, and false color removal
Custom User Sets: Two memory channels for personalized camera settings
