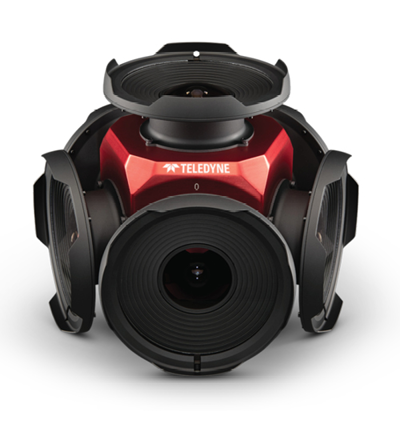

Teledyne Ladybug6 USB3: 72 MP, Red Camera

The Ladybug6 USB3: 72 MP Red camera is a state-of-the-art imaging solution designed for capturing high-resolution 360-degree spherical images in dynamic environments. Engineered for use on moving platforms and built to withstand all-weather conditions, it delivers precision-calibrated 72 MP images with spatial accuracy within ±2 mm at a 10-meter distance.

This advanced camera system combines superior image resolution with powerful onboard processing and durable IP67-rated connectors, ensuring reliability in the field. Featuring expanded GNSS support, advanced APIs, and hardware inputs, the Ladybug6 USB3 enables precise control over camera settings and triggering. Ideal for applications such as panoramic street imaging, road surveying, asset inspection, and HD map generation, this cutting-edge solution sets a new standard for immersive, high-precision imaging.

TECHNICAL INFORMATION:

Resolution: 12,288 x 6,144 (72 MP)
Frame Rate:
    •    Up to 15 FPS at full 72 MP resolution
    •    Up to 29.9 FPS at 36 MP resolution
IP Rating: IP67 for protection against dust and water
Acquisition Modes:
    •    Standard
    •    Bulb
    •    Skip frames
    •    Overlapped exposure
    •    Multi-shot trigger
Exposure Range: 0.02 ms to 2 seconds
Non-Volatile Memory: 1 MB flash storage
Advanced Image Processing:
    •    Luminance Control: Adjustable black level and exposure
    •    Tonal Adjustments: Gamma correction and tone mapping
    •    Color Enhancements: White balance, saturation, leveling, noise reduction, sharpening, and false color removal
Custom User Sets: Two memory channels for personalized camera settings
