HE4K-DCK-10 is compact video encoding solution.

  • Natively integrates with the FCB-ER8300 Sony Block Camera
  • Pass VISCA Camera Control Commands over IP
  • High Quality Efficient HEVC/H.265 Video Encoding
  • Low Bandwidth, Low Latency Video Encoding
  • Simultaneous encode of HEVC/H.265 and H.264

The HE4K-DCK-10 is a compact encoder system designed to enhance Sony’s 4K FCB-ER8300 Block Camera. The hardware consists of encoder boards capable of encoding H.265/HEVC video in HD and Ultra-HD resolutions. The boards feature on-board interfaces including GigE, USB 2.0, RS-485, Microphone Input and Composite Out. These features combined with the existing capabilities of the Sony Block Camera allow for a complete compact HEVC 4K video encoding solution. Users are able to purchase the HE4K-DCK-10 as an OEM starter kit or a complete package that includes an optional enclosure for the entire solution.

Download Product PDF:


  • Interfaces: Video from Sony FCB-ER8300 via KEL ribbon cable, GigE, USB 2.0, Microphone Input, RS-232, RS-485, Composite Output and Optional Micro HDMI Input
  • Video Codecs: H.265/HEVC, H.264
  • Encoding Resolutions: 4K UHD and HD (2160p30 and 720p30)
  • Output Formats: RTP, RTSP, MPEG-2 TS and MJPEG*
  • Encoder Board Size: 58 x 58 mm (2.28 x 2.28 in)
  • Power Consumption: 4.5W typical while encoding H.265/HEVC video in 2160p30

Request a Quote

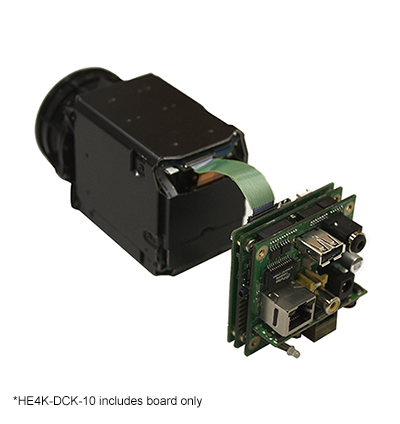

Product image of Z3 Technology HE4K-DCK-10
Product image of Z3 Technology HE4K-DCK-10

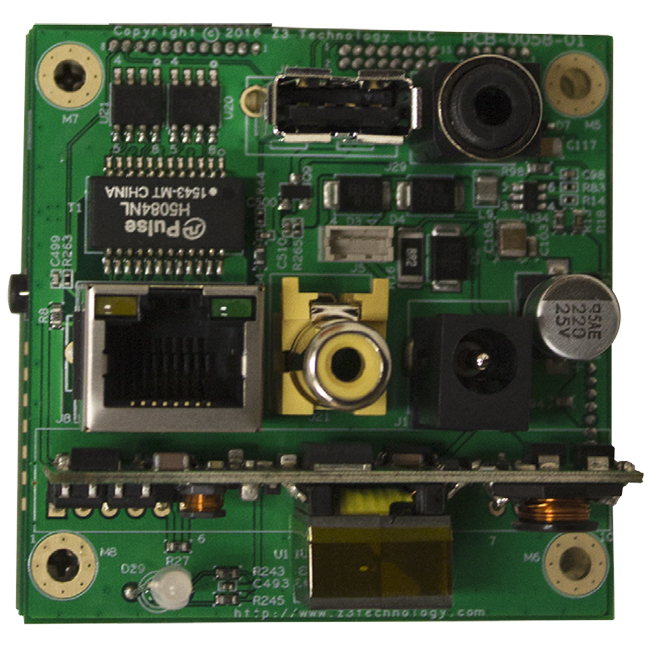

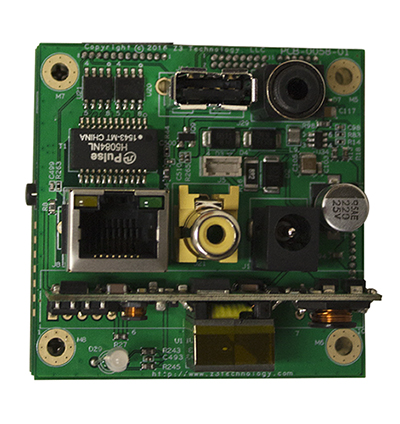

Product Photos
Product image of  Z3 Technology HE4K-DCK-10 Product image of  Z3 Technology HE4K-DCK-10

Quick Info for the Z3 Technology HE4K-DCK-10

Camera Category: Block
Camera Series: 4K
FPS: -
Interface: IP
Manufacturer: Z3 Technology
Resolutions: 4K
Scanning Mode: -
Signal System: Color
Technology: 4K Cameras
