CEI 29mm-IP67 Series Round Camera Enclosure

Machine Vision Camera Enclosure IP67 29mm Series Round

IP67 29mm Series Camera Round Enclosure Key Features

• CEI Integrated Connector Design ( no cord grips )
• IP67 protection
• Universal design for popular 29mm camera models
• Excellent heat dissipation
• Enclosure tailored for specific Camera & Optics
• Adjustable Mount with 2 tapped holes included
• High quality (easy to replace) windows by Midwest Optical
• Lightweight low-profile design
• Type 2 anodizing
• Options: Mounts, Air Curtains, Windows & Filters, Cables
• Options: Custom Sizes, lengths, and focusing solutions.
• Options: Complete Solutions (Camera, Enclosure, Cabling)
• Competitive pricing
• Made in USA, Patent Pending

Download Product PDF:

• CEI 29mm-IP67 Series Round Camera Enclosure

TECHNICAL INFORMATION:

• Camera Size: 29mm square mount machine vision
• Optics: Supports a wide range of C-Mount optics
• Window: Midwest Optical 2mm Borofloat glass – AR coated

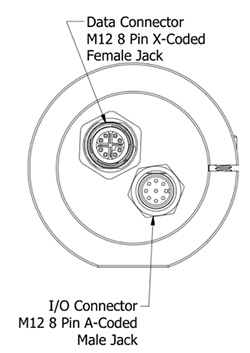

• Interface Connectors: M12 X-Code Ethernet Female
• Optional Interface: M12 A-Code I/O Male
• Mounting: Qty. 2, M6 or 1/4-20 UNC tapped holes with 19.05mm (3/4") hole spacing, adjustable ring mount
• Sealing: IP67
• Material: 6061 Aluminum
• Coating: Type 2 anodized
• Overall Length (L): Varies
• Body Length (B): 90 mm (incl. interface conn.)
• Height / Width (D): 44.5 mm round (body)
• Mount diameter (C): 69 mm
• Window Diameter: 42 mm (48mm with 44mm cover)
• Weight: 370g (typical weight fully assembled W/ Camera)
