  • Acquires standard 50Hz or 60Hz analog video (mono / color).
  • 4 BNC inputs for easy setup.
  • Optional connectors allow up to 16 inputs on BNC or D-type, 12x audio, 8x opto isolated and 8x TTL I/O.
  • Maximum PCI Express burst rate of 190Mbytes/sec.
  • SDK supports various operating systems.
  • Windows, Mac OS X, Linux and QNX support.
  • 3rd party drivers: DirectShow and VDIG/QuickTime.
  • Royalty-free JPEG compression.
  • RoHS compliant.

TECHNICAL INFORMATION:

Quick Info for the Active Silicon AS-LFG4-PE1 Frame Grabber
Buffer: 3K FIFO PER CHANNEL
Camera Inputs: RS170, CCIR, NTSC, PAL
Host Bus: PCIe x1
Interface : Analog
Manufacturer: Active Silicon
Pixel Clock: 14.4 MHz

Request a Quote

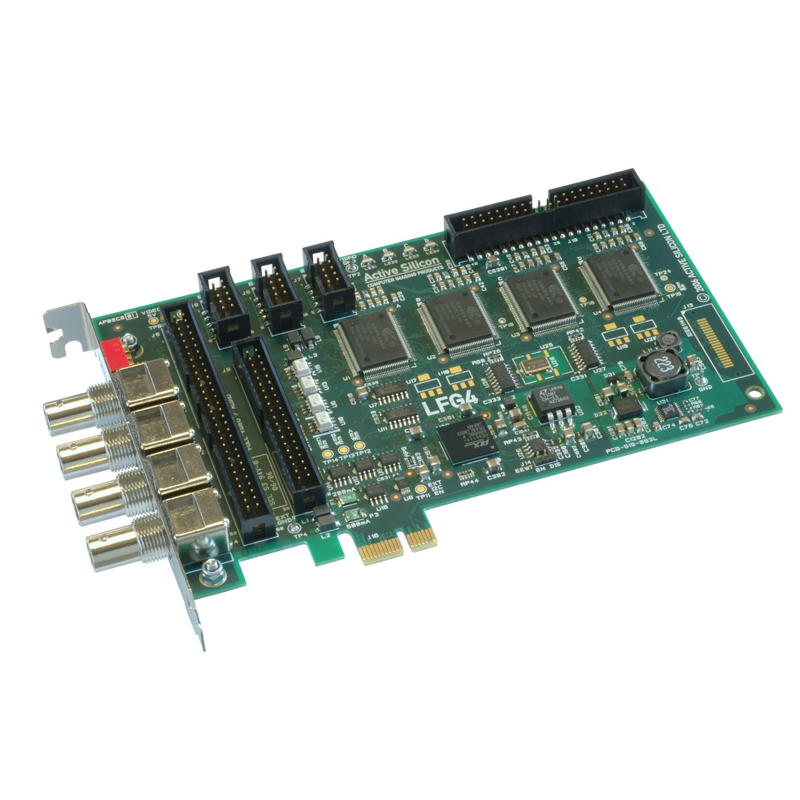

Product image of Active Silicon AS-LFG4-PE1
Product Photos

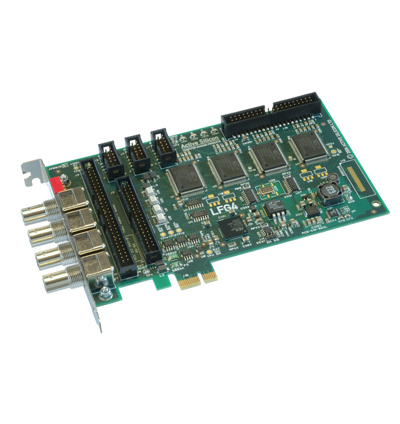

Product image of Active Silicon AS-LFG4-PE1
