- Supports the latest v2.0 Camera Link interface.
- Comprehensive I/O supporting standard FireBird I/O adapters.
- Watchdog feature.
- Standard Camera Link connectors (MDR).
- Supports PoCL (Power over Camera Link).
- RISC based ActiveDMA gives zero CPU usage acquisition.
- 3U CompactPCI Serial form-factor.
- Extended temperature operation.
- Supported by the PHX Software Development Kit (SDK).
- Supports GenICam for CLProtocol & GenCP cameras.
- Includes GenICam GenTL Producer.

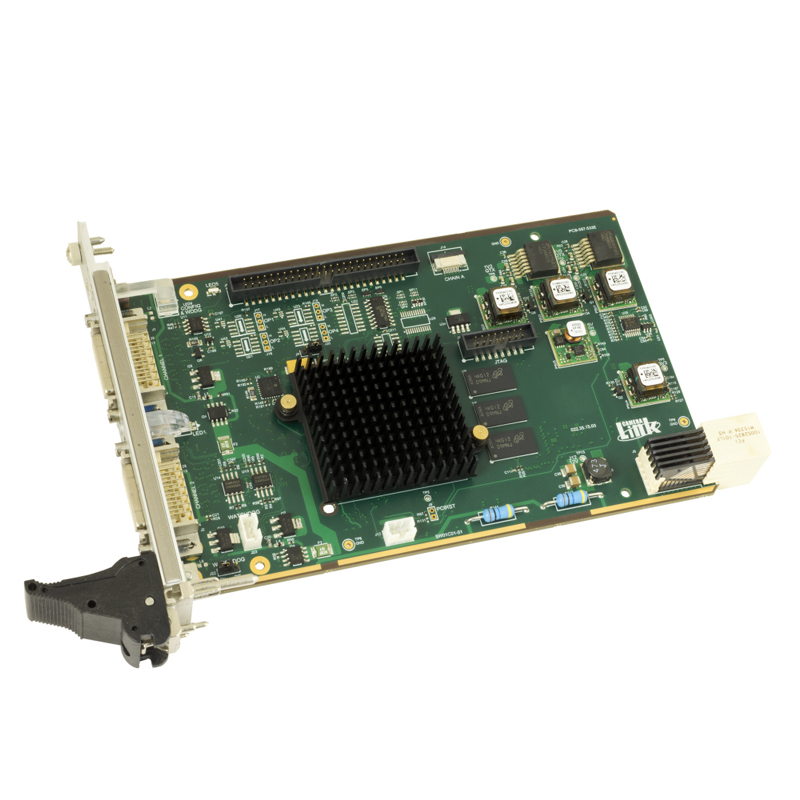

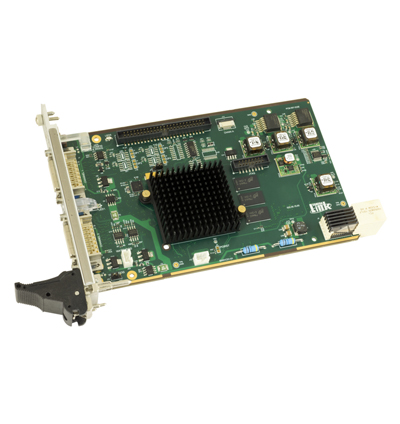

Active Silicon AS-FBD-1XCLD-3CPCIS-2PE4 Frame Grabber
Need Help Finding the Best Frame Grabber for Your Solution? Call (631) 254-2600
Request a Quote
Get a Quote for the Active Silicon AS-FBD-1XCLD-3CPCIS-2PE4 Frame Grabber
Please fill out the form below to request a quote. Fields marked with * are required.
TECHNICAL INFORMATION:
| Buffer: | 320 MB |
|---|---|
| Camera Inputs: | 2 Base, or 1 Medium, or 1 Full or 80 bit (Deca) |
| Host Bus: | PCI-X66 |
| Interface : | Camera Link |
| Manufacturer: | Active Silicon |
| Pixel Clock: | 85 MHz |
