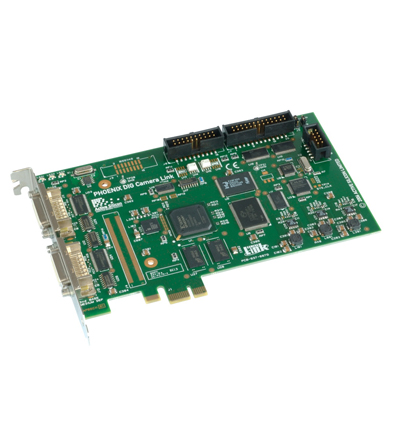

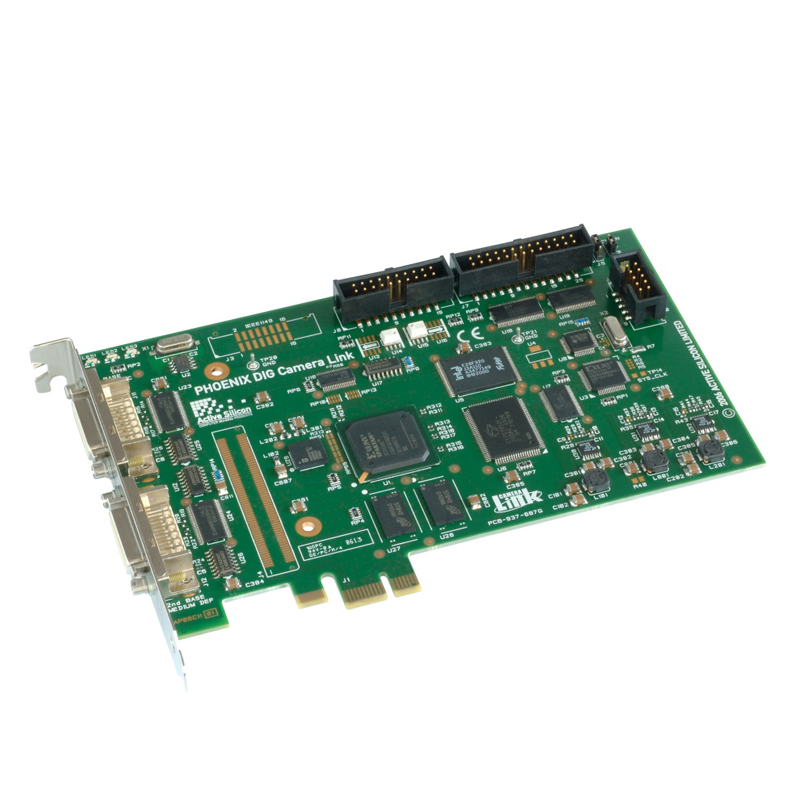

Active Silicon AS-PHX-D48CL-PE1 Frame Grabber
Need Help Finding the Best Frame Grabber for Your Solution? Call (631) 254-2600
Request a Quote
Get a Quote for the Active Silicon AS-PHX-D48CL-PE1 Frame Grabber
Please fill out the form below to request a quote. Fields marked with * are required.
- Single Base, Dual Base or Medium Camera Link Configurations.
- Single lane (x1) v1.1 PCI Express interface.
- PCI Express burst rates in excess of 190Mbytes/sec.
- Supports Power over Camera Link with SafePower.
- Supports digital areascan / linescan cameras.
- Multi-tap & multi-channel camera formats, incl. line and pixel interleaved.
- Maximum pixel clock of 85MHz.
- PHX SDK supports various operating systems.
- v1.2 Camera Link compliant.
- Bus mastering hardware control requiring 0% CPU.
- Dual channel serial port with EIA-644 signalling.
- Supports Camera Link serial comms API.
- Data Valid (DVAL) for slow data rate cameras.
- Opto-Isolated, TTL and EIA-644 I/O.
- Utilises software configurable FPGA technology.
- RoHS compliant.
TECHNICAL INFORMATION:
| Buffer: | 128 K FIFO |
|---|---|
| Camera Inputs: | 2 Base, or 1 Medium |
| Host Bus: | PCIe x1 |
| Interface : | Camera Link |
| Manufacturer: | Active Silicon |
| Pixel Clock: | 85 MHz |
