  • CoaXPress gives high speed data, power, and camera control all over a single cable.
  • High performance with 12.5 Gigabits per second input rate.
  • Fast PCI Express 8-lane Gen2 interface.   RISC based DMA engine gives ultimate performance.
  • Comprehensive I/O.   Supports PoCXP (Power over CoaXPress).
  • Standard half-length PCI form factor.
  • Full GenICam support (including GenTL producer).   Supported by the proven Phoenix software SDK.

TECHNICAL INFORMATION:

Quick Info for the Active Silicon AS-FBD-2XCXP6-2PE8 Frame Grabber
Buffer: 512 MB
Camera Inputs: 4 x 6.25 Gb/s
Host Bus: PCIe Gen2 x8
Interface : CoaXPress
Manufacturer: Active Silicon

Request a Quote

Product image of Active Silicon AS-FBD-2XCXP6-2PE8
Product Photos

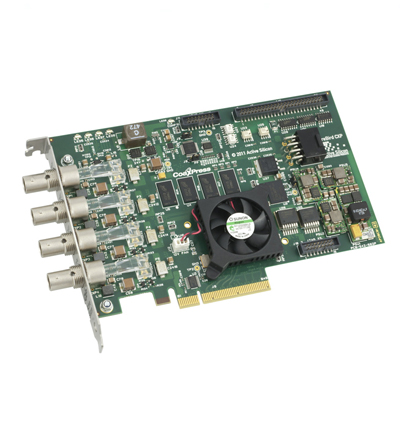

Product image of Active Silicon AS-FBD-2XCXP6-2PE8
