  • Dual input SDI and HD-SDI configuration.
  • PCI Express burst rates in excess of 190Mbytes/sec across the x1 interface.
  • Simultaneous capture from two independent SDI or switch between two HD-SDI sources.
  • Low latency SDI/HD-SDI signal pass through.   8-bit and 10-bit uncompressed video capture.
  • Supported video formats include SDI 525/625 line, 720p and 1080i.
  • Two serial ports configurable as RS-232 or RS-485 signalling.
  • Bus mastering hardware control of scatter-gather requires 0% host CPU intervention.
  • Hardware YUV to RGB conversion.
  • Utilises software configurable FPGA technology for maximum flexibility.
  • Software Development Kit (SDK) supports various operating systems for rapid integration.

TECHNICAL INFORMATION:

Quick Info for the Active Silicon AS-PHX-D20HDSDI-PE1 Frame Grabber
Buffer: 128 K FIFO
Camera Inputs: Dual input channels (combination of HD-SDI or SDI)
Host Bus: PCIe x1
Interface : HD - SDI
Manufacturer: Active Silicon

Request a Quote

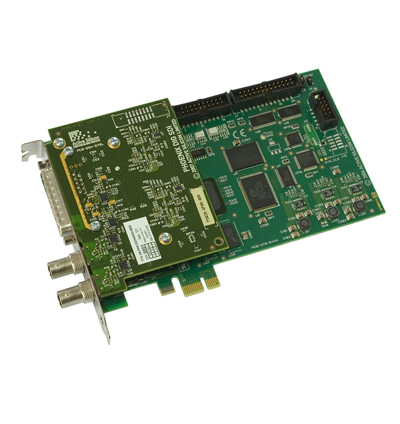

Product image of Active Silicon AS-PHX-D20HDSDI-PE1
Product Photos

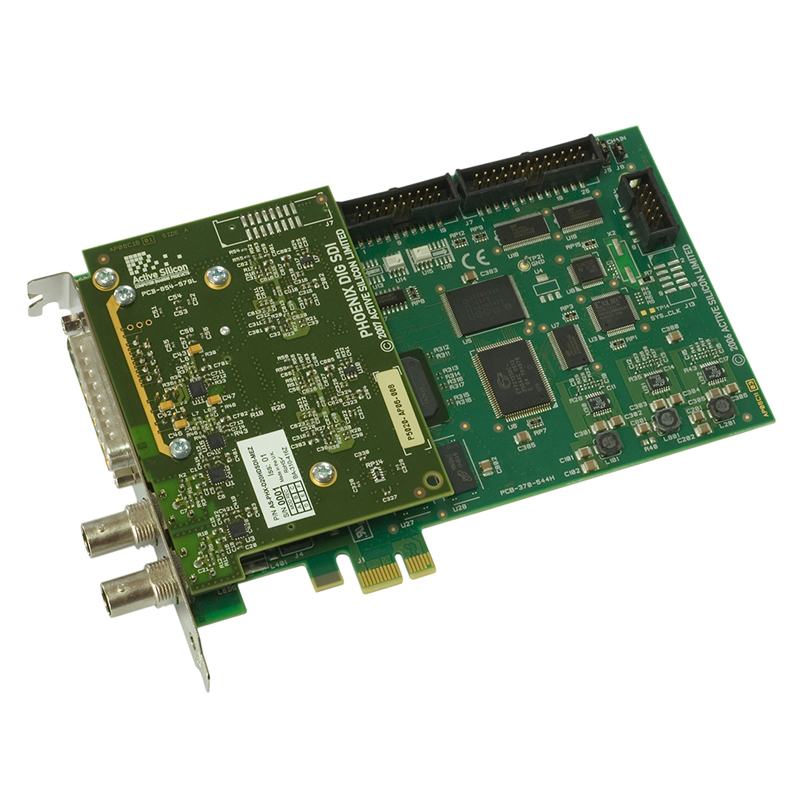

Product image of Active Silicon AS-PHX-D20HDSDI-PE1
