- 36 bit EIA-644 (LVDS) data, 4 bits for control.
- 4 lane v1.1 PCI Express interface.
- PCIe burst rates in excess of 750Mbytes/sec.
- Supports digital areascan / linescan cameras.
- Multi-tap & multi-channel camera formats, incl. line and pixel interleaved.
- Maximum pixel clock of 75MHz.
- PHX SDK supports various operating systems.
- Bus mastering hardware control requires 0% CPU.
- Dual channel serial port with both EIA-232 & EIA-644 signalling.
- Opto-Isolated, TTL and EIA-644 I/O.
- Utilises software configurable FPGA technology.
- RoHS compliant.
- Common API allows seamless migration for existing Phoenix PCI users.
Active Silicon AS-PHX-D36-PE4 Frame Grabber
Need Help Finding the Best Frame Grabber for Your Solution? Call (631) 254-2600
Request a Quote
Get a Quote for the Active Silicon AS-PHX-D36-PE4 Frame Grabber
Please fill out the form below to request a quote. Fields marked with * are required.

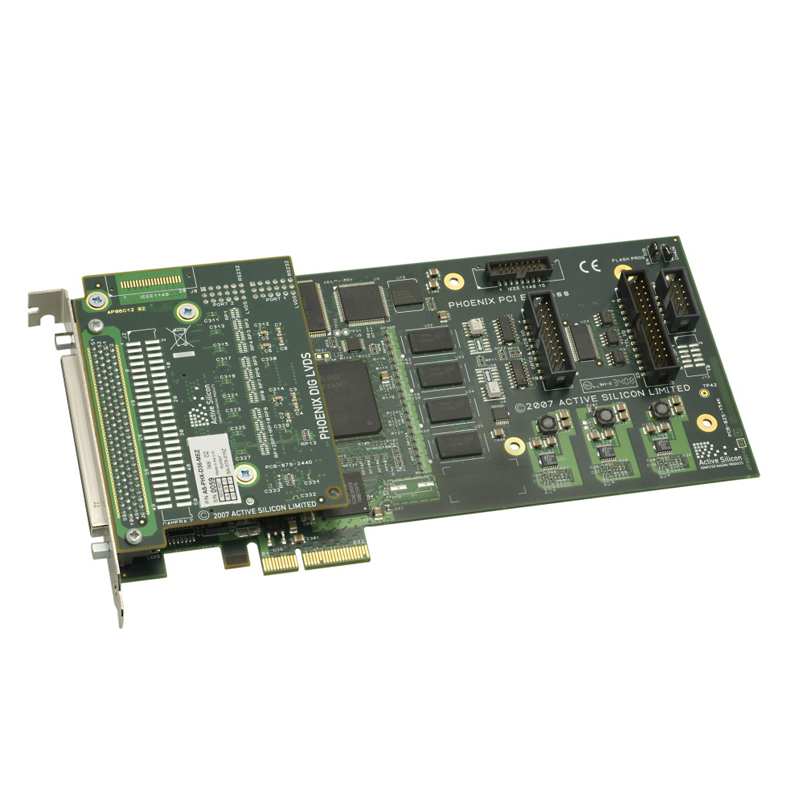

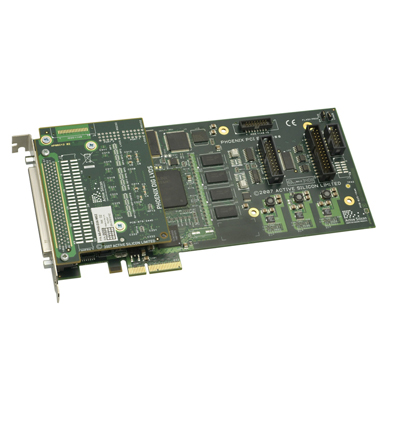

The Phoenix-D36 x4 is a four lane (x4) PCI Express board for capture from LVDS and RS-422 camera sources with a maximum bit depth of 36-bits. There is extensive onboard I/O along with serial port functionality.
TECHNICAL INFORMATION:
| Buffer: | 196 K FIFO |
|---|---|
| Camera Inputs: | Multi tap |
| Host Bus: | PCIe x4 |
| Interface : | LVDS |
| Manufacturer: | Active Silicon |
| Pixel Clock: | 75 MHz |
