Building on the field proven technology and performance of DALSA’s X64 frame grabbers the new Xcelera Series leverages the PCI Express (PCIe) platform to bring traditional image acquisition and processing technology to new levels of performance and flexibility. The PCIe host interface is a point to point host interface allowing simultaneous image acquisition and transfer without loading the system bus and involving little intervention from the host CPU.

The X64 Xcelera-CL PX4 SE is a highly versatile PCIe frame grabber capable for one Camera Link™ Base, Medium, or Full camera and performing image transfers at rates up to 1024MB/s. Its low cost, combined with its ability to support multiple tap configurations from area and linescan monochrome/RGB cameras simultaneously; in addition to its onboard FPGA Bayer decoding and real-time shading correction makes the X64 Xcelera-CL PX4 SE an ideal solution to a wide variety of cost-sensitive applications.

TECHNICAL INFORMATION:

Quick Info for the Dalsa Xcelera-CL PX4 SE Frame Grabber
Buffer: 128 MB
Camera Inputs: 2 Base, or 1 Medium
Host Bus: PCIe x4
Interface : Camera Link
Manufacturer: Dalsa
Pixel Clock: 85 MHz

Request a Quote

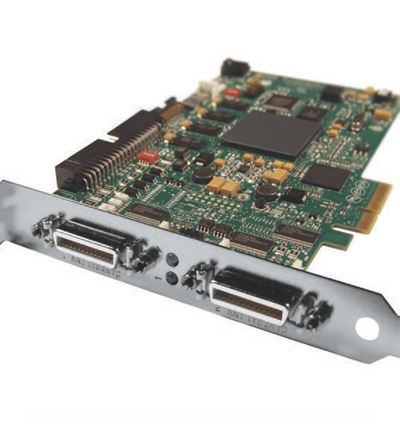

Product image of Dalsa Xcelera-CL PX4 SE
