The Xcelera-CL VX4 is the next generation user programmable vision processor based on the PCI Express X4 platform. It features powerful embedded processing architecture for real-time high-performance machine vision applications. The Xcelera-CL VX4 combines field-proven image acquisition with onboard processing capabilities.

The X64 Xcelera-CL VX4 Full is a Camera Link vision processor that is based on the PCI Express x4 interface. Compatible with a Base, Medium or Full Camera Link® camera, the X64 Xcelera-CL VX4 Full supports a wide variety of multi-tap area and line scan colour and monochrome cameras. The X64 Xcelera-CL VX4 Full board can interface with advanced Camera Link cameras output formats including 10-taps of 8-bit at 85MHz pixel clock rates.

Sophisticated Embedded Processing Platform

The Xcelera-CL VX4 Full features FPGA hardware processing platform that combines ACU(Acquisition Control Unit), DTE (Data Transfer Engine) and IPU(Image Processing Unit) and state of the memory architecture. As a result, Xcelera-CL VX4 is capable of handling variety of complex, real-time image processing topologies including iterative processing loops. While the FPGA technology provides ability to adapt to variety of high-speed, compute intensive real-time processing applications, the Xcelera-CL VX4 hardware design have been implemented using standard off-the-shelf components with long term availability.


Quick Info for the Dalsa Xcelera-CL VX4 Frame Grabber
Buffer: 2 x 512MB
Camera Inputs: 1 Base, or 1 Medium, or 1 Full 80 bit (Deca)
Host Bus: PCIe x8
Interface : Camera Link
Manufacturer: Dalsa
Pixel Clock: 85 MHz

Request a Quote

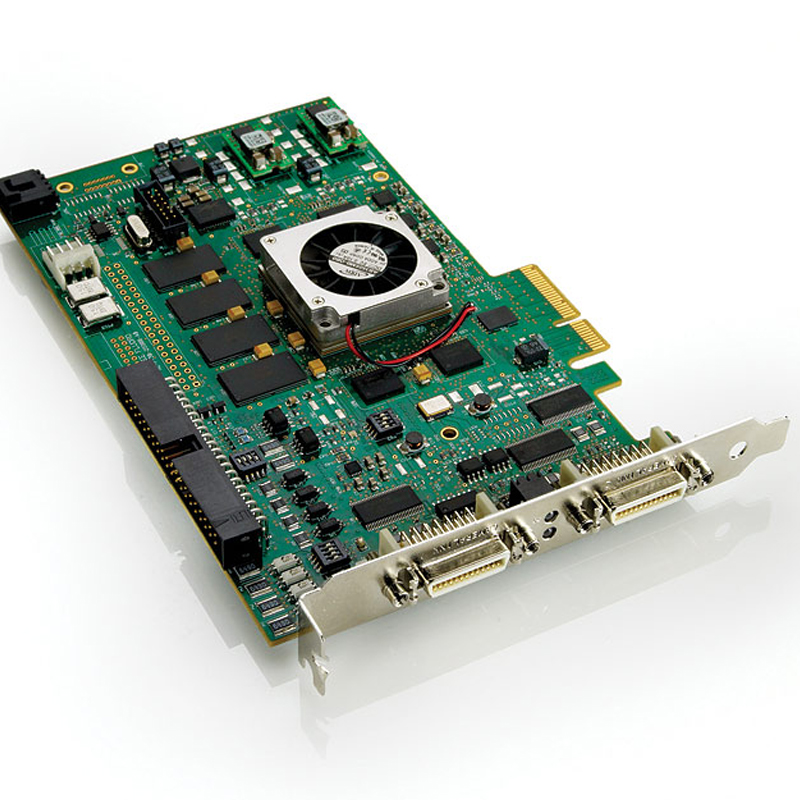

Product image of Dalsa Xcelera-CL VX4
Product Photos

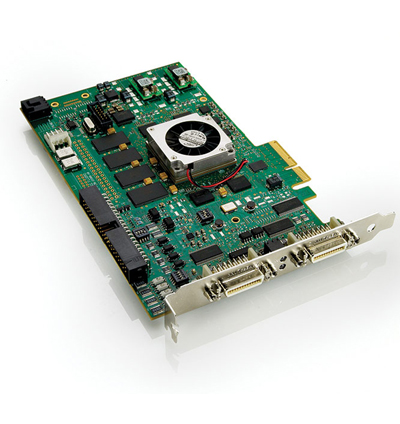

Product image of Dalsa Xcelera-CL VX4
