Advanced CLHS Acquisition and Processing

Building on the field proven capability of Teledyne DALSA’s Xcelera frame grabber series, the Xtium™-CLHS PX4 is based on AIA’s CameraLink HS standard and uses PCI Express™ Gen 2.0 expansion bus to deliver high speed image acquisition and image transfer to the host memory. Xtium-CLHS uses industry standard CX4 cable to delivery up to 2.1 GB/s of image acquisition over a single cable to go beyond 15m and host transfer speeds of up to 1.7GB/sec - all in a compact, half-length, single slot solution.

Great features to make your job easier

The Xtium-CLHS features high-performance on-board, Data Transfer Engine (DTE) to deliver maximum bandwidth without the need for specialized motherboards or chipsets. By enabling maximum sustained throughput and ready-to-use image data, the Xtium-CLHS PX4 minimizes CPU usage and improves processing times for host applications. In addition, the Xtium series has been engineered with enhanced memory architecture to meet the ever-increasing image resolution and faster frame rates of today’s camera technology. And all Xtium-CLHS frame grabbers are built with Teledyne DALSA's Trigger to Image Reliability framework, which controls and monitors the entire process from trigger through image capture and transfer to host memory and helps protect you from data loss.


  • Half-length PCI Express Gen 2.0 x4 Board
  • Camera Link HS compliant
  • Supports acquisition rates up to 2.1 GB/sec
  • Host transfers up to 1.7 GB/sec
  • User programmable 3x3 filter
  • Data-forwarding for distributed image processing
  • Field proven CX4 cabling
  • Microsoft® Windows® 7, Windows 8/8.1, Windows 10 32/64-bit, WOW64 and Linux (see note 1)
  • Fully supported by Sapera Vision Software SDKs
  • FCC, CE, and ROHS compliant

Request a Quote

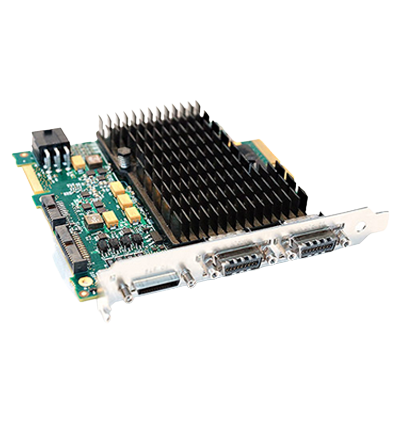

Product image of Dalsa Xtium-CLHS PX4
Product Photos
Product image of Dalsa Xtium-CLHS PX4
Quick Info for the Dalsa Xtium-CLHS PX4 Frame Grabber
Buffer: 1024 MB
Camera Inputs: 1 Camera Link HS
Host Bus: PCIe Gen2 x4
Interface : Camera Link HS
Manufacturer: Dalsa
Pixel Clock: N/A
