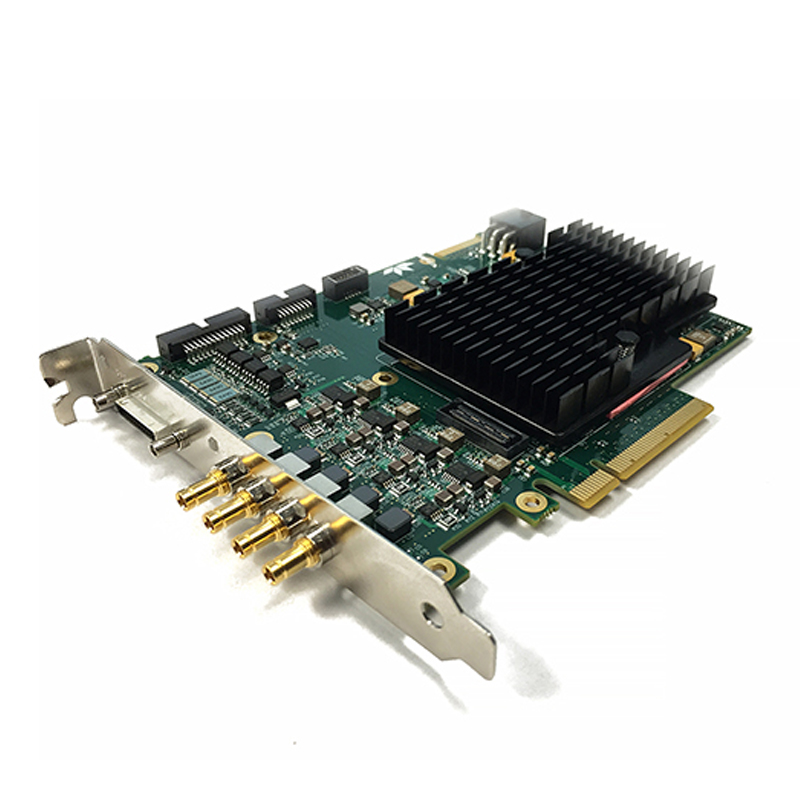

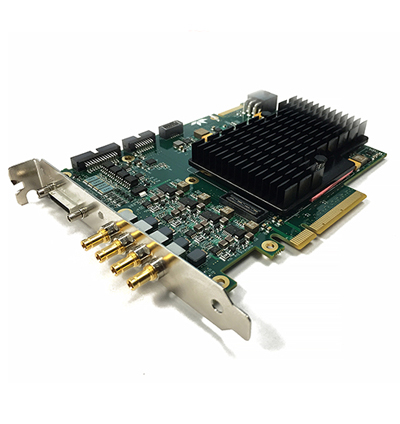

Dalsa Xtium-CXP PX8 Frame Grabber

High-Performance CoaXPress™ PCIe Gen2 Frame Grabber Series

The Xtium™-CXP is based on the industry standard PCI Express™ Gen 2.0 expansion bus to deliver high speed access to host memory. The Xtium series offers high performance frame grabbers for CameraLink, CameraLink HS and CoaXPress interface standards. The Xtium Series takes full advantage of PCIe Gen 2.0 platform to deliver bandwidth up to 3.4 GB/s using PCIe x8 slots. By enabling maximum sustained throughput and ready-to-use image data, the Xtium series minimizes CPU usage and improves processing times for the host applications. In addition, the Xtium series offers enhanced memory architecture to handle area and line scan, monochrome and color cameras. In addition, the Xtium-CXP series support image acquisition rate of up to 6.25 Gb/s from four input channels.

The Xtium series support Sapera LT’s Trigger-to-Image (T2IR) framework for maximum reliability of the image acquisition system. The T2IR functions provide critical, real-time details of system events that help track and monitor acquisition, transfer, and control processes to ensure reliability of the imaging system. It combines hardware and software functions that can be called from user applications using the Sapera LT libraries or used as a stand-alone utility – Sapera Monitor. To run Sapera Monitor no changes to the user application are required. It offers intuitive GUI with user-selectable events to provide detailed reports while user application executes image acquisition and transfer commands. Teledyne DALSA’s T2IR helps increase system uptime and lower costs. All T2IR functionality is available free of charge as part of Sapera LT SDK and Xtium series of frame grabbers.

When using Teledyne DALSA’s Sapera Processing library, the Xtium series offers free run-time license for Sapera Processing Standard Tools Run-Time (RTL). The Standard Tools RTL includes access to over 350 highly optimized image processing function and tools for Area Based Search, Blob Analysis and image calibration. The Sapera LT supports Windows and Linux operating systems and supports multiple programming languages and development environments.

TECHNICAL INFORMATION:
