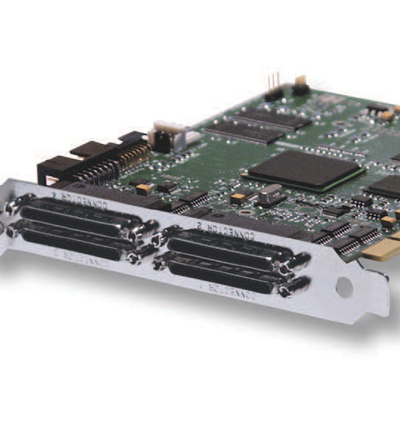

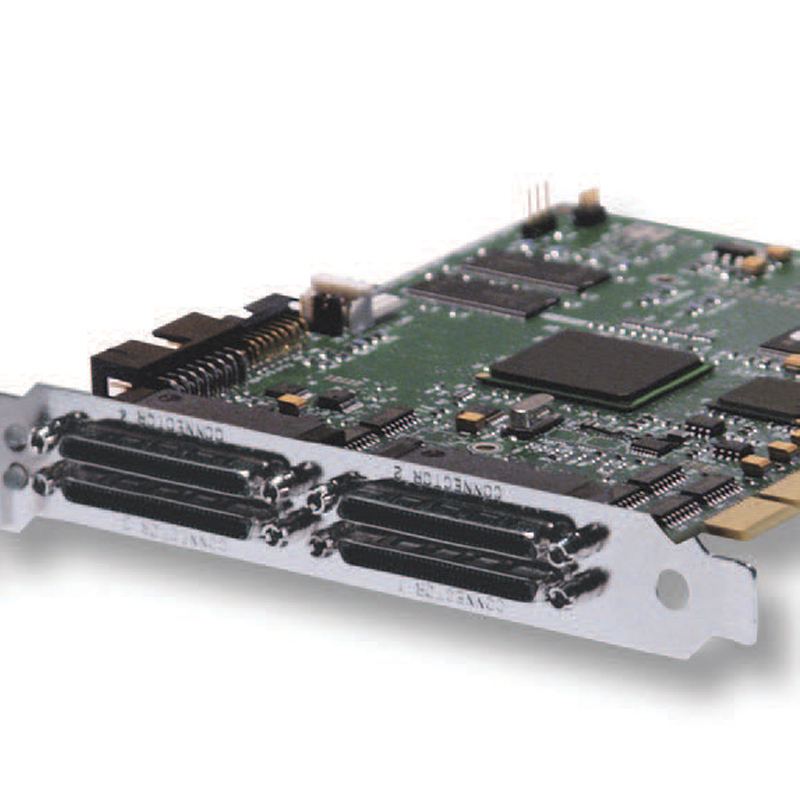

Dalsa X64-LVDS Frame Grabber

The X64 Xcelera-LVDS PX4 is a PCIe x4 frame grabber for conventional parallel digital output cameras. As part of DALSA’s flagship Xcelera Series of high-performance frame grabbers, the Xcelera-LVDS leverages the PCI Express (PCIe) platform to bring traditional image acquisition and processing technology to new levels of performance and flexibility. The PCIe host interface is a point-to-point interface that facilitates simultaneous image acquisition and transfer without loading the system bus or requiring significant intervention from the host CPU. Designed with the requirements of machine vision OEMs in mind, the Xcelera Series of products range from entry level frame grabbers to high-performance image acquisition and processing boards.

The X64 Xcelera-LVDS PX4 has been built within DALSA’s Trigger-to-Image Reliability (T2IR) technology framework. The T2IR technology leverages DALSA’s hardware and software innovations to control, monitor and correct the image acquisition process from the time that an external trigger event occurs to the moment the data is sent to the host, providing traceability when errors do occur and permitting recovery from those errors. The X64 Xcelera-LVDS PX4 supports a wide variety of multi-tap area and line scan color and monochrome cameras.

TECHNICAL INFORMATION:
