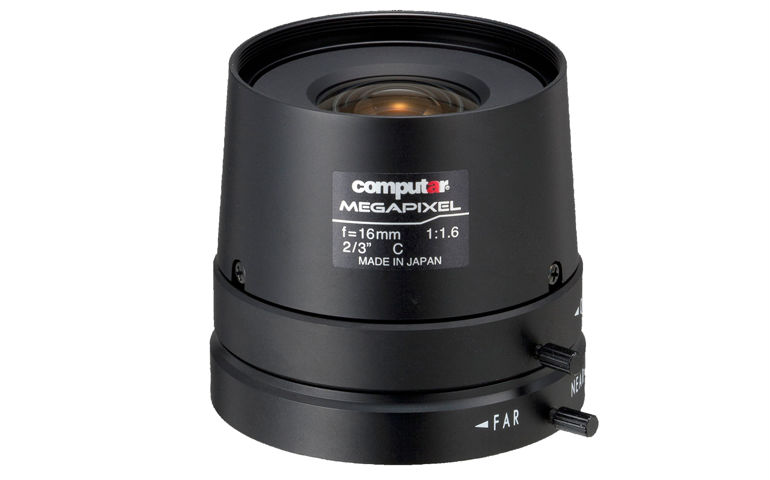

Computar M1616FIC-MP C Mount Lens

5 Megapixel 2/3" 16mm, F1.6, Manual Iris, C Mount Lens

• Over 5.0 Megapixel
• Full HD Format
• 16mm 2/3" C Mount
• Manual Iris
• Peak performance at long distance
• Designed for ITS & Security applications

Download Product PDF:

• Computar M1616FIC-MP

TECHNICAL INFORMATION:

• Focal Length: 16mm
• Max. Aperture Ratio: 1:1.6
• Max. Image Format: 6.6mm x 8.8mm(11mm)
• Operation Range:
  Iris: F1.8 - F16C
  Focus: 1m - lnf.
• Control:
  Iris: Manual
  Focus: Manual
  Zoom:  -
• Angle of View, 2/3 Type:
  (D) 38.0^o
  (H) 30.8^o
  (V) 23.4^o
• Angle of View, 1/2 Type:
  (D) 28.1^o
  (H) 22.7^o
  (V) 17.1^o
• Angle of View, 1/3 Type:
  (D) 21.3^o
  (H) 17.1^o
  (V) 12.9^o
• Operating Temperature: -10^o - + 50^oC
• Effective Lens Aperture:
  Front: 21.9mm
  Rear: 11.0mm
• Back Focal Length: 13.3mm
• Flange Back Length: 17.526mm
• Mount: C-Mount
• Filter Size: M40.5 × 0.5
• Dimensions: 47.5mm ×45mm
• Weight: 139.3 g
