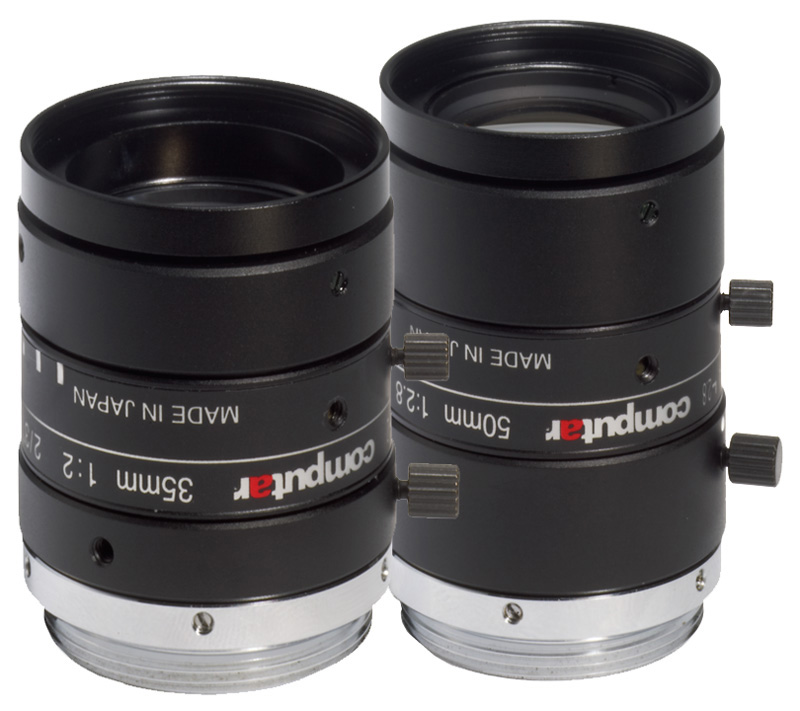

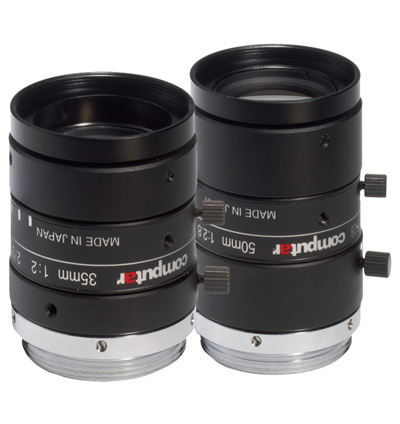

Computar M2518-MPW2 C Mount Lens

2/3" 25mm F1.8 5 Megapixel Ultra Low Distortion Lens (C Mount)

Dedicated design emphasis on the performance for close-up applications required in factory automation and image processing areas.

• Ultra low distortion
• Higher relative illumination rate
• Floating design
• Locking set screws for focus and iris

Download Product PDF:

• Computar M2518-MPW2

TECHNICAL INFORMATION:

• Focal Length: 25mm
• Max. Aperture Ratio: 1:1.8
• Max. Image Format: 8.8mm x 6.6mm(11mm)
• Operation Range:
  Iris: F1.8 - F16.0
  Focus: 0.2m - Inf.
• Object Dimension at M.O.D.:
  2/3 Type: 5.48cm x 7.31cm
  1/1.8 Type: 4.32cm x 5.73cm
  1/2 Type: 3.98cm x 5.31cm
• Angle of View, 2/3 Type:
  (D) 24.6^o
  (H) 19.9^o
  (V) 15.0^o
• Angle of View, 1/1.8 Type:
  (D) 19.5^o
  (H) 15.7^o
  (V) 11.8^o
• Angle of View, 1/2 Type:
  (D) 18.1^o
  (H) 14.5^o
  (V) 10.9^o
• Operating Temperature: -10^o - + 50^oC
• Effective Lens Aperture:
  Front: 18.0mm
  Rear: 13.0mm
• Back Focal Length: 13.8mm
• Flange Back Length: 17.526mm
• Mount: C-Mount
• Filter Size: M27.0 P=0.5mm
• Dimensions: 29mm x 36.37mm
• Weight: 60.0g
