2/3" 35mm F2.0 5 Megapixel Ultra Low Distortion Lens (C Mount)

Dedicated design emphasis on the performance for close-up applications required in factory automation and image processing areas.

  • Ultra low distortion
  • Higher relative illumination rate
  • Floating design
  • Locking set screws for focus and iris

Download Product PDF:

TECHNICAL INFORMATION:

  • Focal Length: 35mm
  • Max. Aperture Ratio: 1:2.0
  • Max. Image Format: 8.8mm x 6.6mm(11mm)
  • Operation Range:
    Iris: F2.0 - F22.0
    Focus: 0.2m - Inf.
  • Object Dimension at M.O.D.:
    2/3 Type: 3.48cm x 4.63cm
    1/1.8 Type: 2.74cm x 3.63cm
    1/2 Type: 2.53cm x 3.37cm
  • Angle of View, 2/3 Type:
    (D) 17.8o
    (H) 14.3o
    (V) 10.7o
  • Angle of View, 1/1.8 Type:
    (D) 14.0o
    (H) 11.2o
    (V) 8.5o
  • Angle of View, 1/2 Type:
    (D) 13.0o
    (H) 10.4o
    (V) 7.8o
  • Operating Temperature: -10o - + 50oC
  • Effective Lens Aperture:
    Front: 18.0mm
    Rear: 12.0mm
  • Back Focal Length: 18.0mm
  • Flange Back Length: 17.526mm
  • Mount: C-Mount
  • Filter Size: M27.0 P=0.5mm
  • Dimensions: 29mm x 37.34mm
  • Weight: 59.0g

Request a Quote

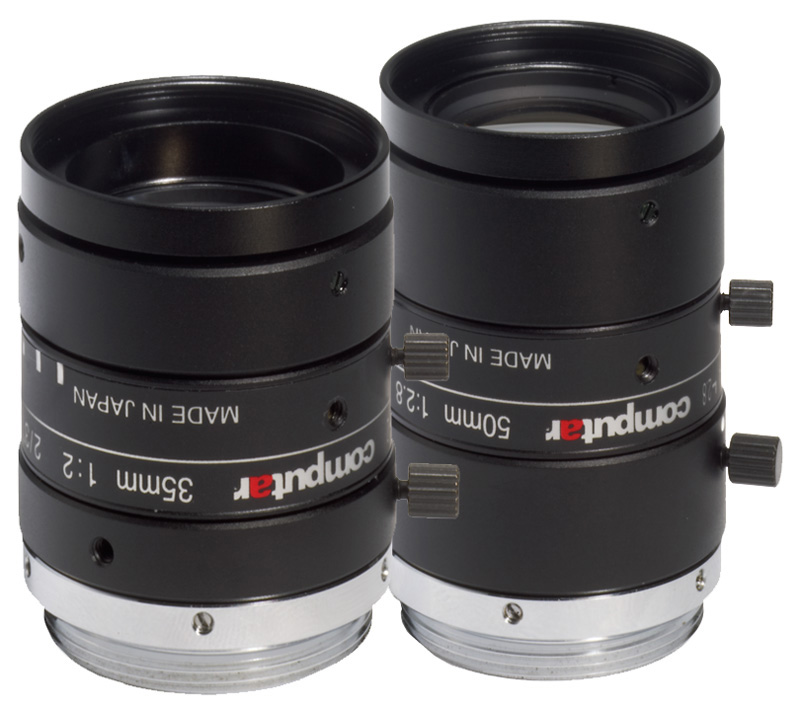

Product image of Computar M3520-MPW2
Product Photos

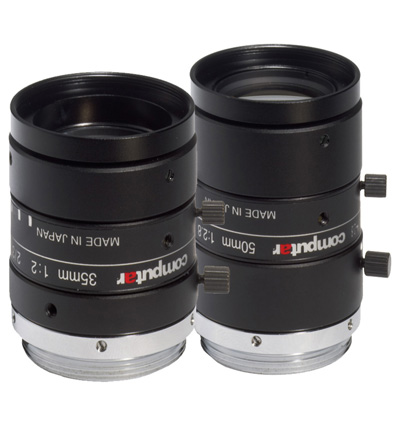

Product image of  Computar M3520-MPW2
Quick Info for the Computar M3520-MPW2 C Mount Lens
Aperture: 2.0 ~ 22
Focal Length: 35mm
Format : 2/3
Manufacturer: Computar
Model Type: Fixed Focal
Mount: C Mount
Product Life Cycle: New Product
Resolution : 5 MP
Ruggedized: --
