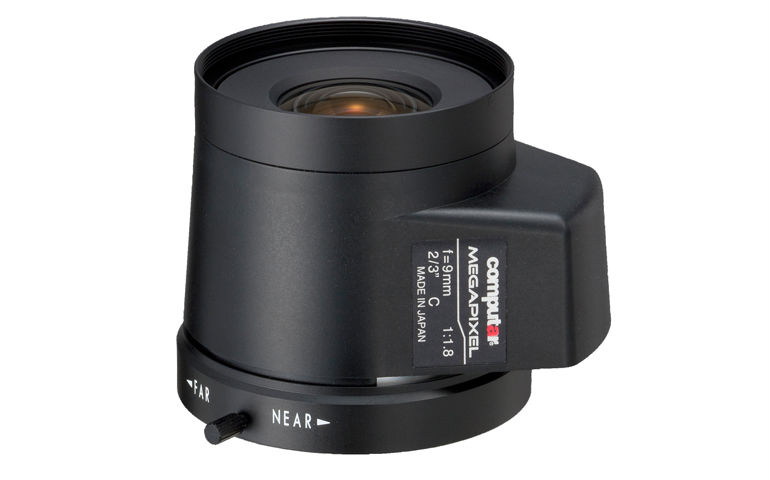

Computar MG0918FC-MP C Mount Lens

5 Megapixel 2/3" 9mm, F1.8, DC Auto-iris, C Mount Lens

• Over 5.0 Megapixel
• Full HD Format
• 9mm 2/3” C Mount
• DC Auto-iris
• Peak performance at long distance
• Designed for ITS & Security applications

Download Product PDF:

• Computar MG0918FC-MP

TECHNICAL INFORMATION:

• Focal Length: 9mm
• Max. Aperture Ratio: 1:1.8
• Max. Image Format: 6.6mm x 8.8mm(11mm)
• Operation Range:
  Iris: F1.8 - F360C
  Focus: 1m - lnf.
• Control:
  Iris: DC Auto Iris
  Focus: Manual
  Zoom:  -
• Angle of View, 2/3 Type:
  (D) 63.4^o
  (H) 52.1^o
  (V) 39.9^o
• Angle of View, 1/2 Type:
  (D) 47.8^o
  (H) 38.7^o
  (V) 29.3^o
• Angle of View, 1/3 Type:
  (D) 36.4^o
  (H) 29.3^o
  (V) 22.1^o
• Operating Temperature: -10^o - + 50^oC
• Effective Lens Aperture:
  Front: 20.1mm
  Rear: 12.4mm
• Back Focal Length: 14.8mm
• Flange Back Length: 17.526mm
• Mount: C-Mount
• Filter Size: M40.5 × 0.5
• Dimensions: 42mm×57.8mm ×45mm
• Coil:
  Drive: 190
  Control: 1000
• Weight: 107 g
