Computar TG2616FCS-4 CS Mount Lens

Need Help Finding the Best Lens for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Computar TG2616FCS-4 CS Mount Lens

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

1/3" 2.6mm f1.6 DC Auto Iris w/4-pin mini connector long cable (CS Mount)

Auto iris supporting DC controlled cameras

Download Product PDF:

TECHNICAL INFORMATION:

  • Focal Length: 2.6mm
  • Max. Aperture Ratio: 1:1.6
  • Max. Image Format: 4.8mm x 3.6mm (6mm)
  • Operation Range:
    Iris: F1.6 - F360C
    Focus: 0.3m - Inf.
  • Control:
    Iris: DC Auto Iris
    Focus: Manual
  • Object Dimension at M.O.D.: 71cm x 46.4cm
  • 1/3" Type Angle of View:
    (D) 123.0o
    (H) 99.6o
    (V) 75.4o
  • Operating Temperature: -20o - + 50oC
  • Effective Lens Aperture:
    Front: 16.4mm
    Rear: 8mm
  • Back Focal Length: 7.5mm
  • Flange Back Length: 12.5mm
  • Mount: CS-Mount
  • Filter Size: ----
  • Dimensions: W32mm x H39.8mm x D34.7mm
  • Weight: 42g
  • Coil:
    Drive - 190 ohm
    Control - 855 ohm

Request a Quote

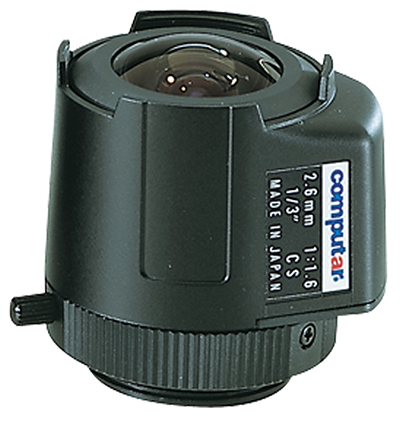

Product image of Computar TG2616FCS-4
Product Photos

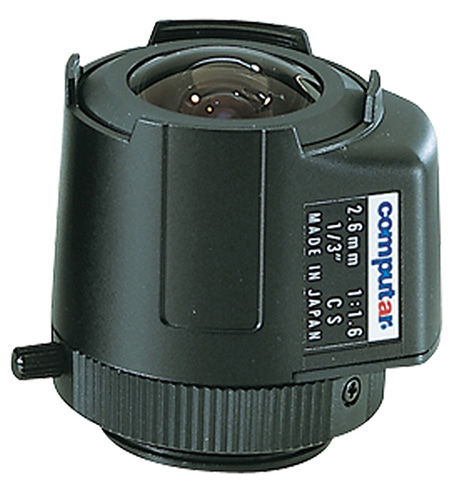

Product image of Computar TG2616FCS-4
Quick Info for the Computar TG2616FCS-4 CS Mount Lens
Aperture: 1.6 ~ 360
Focal Length: 2.6mm
Format : 1/3
Manufacturer: Computar
Mount: CS Mount
Resolution : 1.5 MP <
Ruggedized: --
